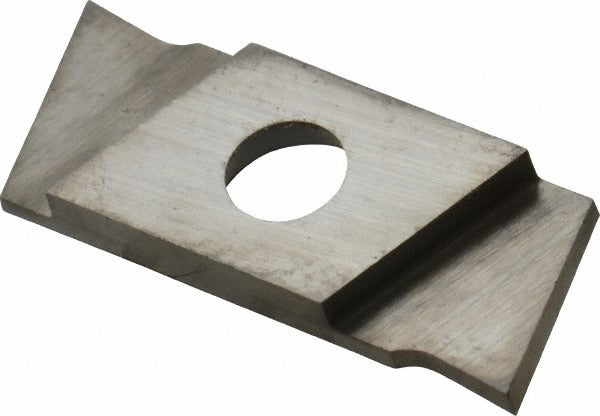

Nikcole Mini-systems GIE7GP1.0 L-RC2 Carbide Cutoff Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP1.0 L-RC2 is a solid carbide cutoff and grooving insert designed for precision parting and groove operations on CNC lathes and turning centers. Manufactured to a C2 carbide material grade with a coated finish, this insert delivers consistent performance on non-ferrous metal workpieces. It features a 1.00 mm (0.0394 inch) cutting width, a 7-degree right-hand lead angle, and a GP chipbreaker geometry. The insert carries ISO 9001 certification and is part of the established Nikcole Mini-Systems series, commonly installed by machinists and toolroom technicians in production and job-shop environments.

This insert is suited for cut-off and grooving operations on non-ferrous materials in both production and light-duty machining applications. The right-hand lead angle and GP chipbreaker make it appropriate for standard OD grooving and parting on bar-fed or chucked workpieces. It is a multi-use insert compatible with GIE-series toolholders. Minimum order quantity is 10 pieces; each package contains 1 insert.

Key Features

• Solid carbide construction, C2 material grade with coated finish for extended tool life on non-ferrous metals
• 1.00 mm cutting width (0.0394 inch) for narrow, precise cutoff and grooving passes
• 7-degree right-hand lead angle with left-hand insert hand orientation
• GP chipbreaker geometry promotes controlled chip evacuation during parting and grooving
• Maximum depth of cut: 6.00 mm (0.2362 inch)
• ISO 9001 certified manufacturing

Compatibility

Designed for use with GIE-series insert-style toolholders in the Nikcole Mini-Systems platform. Intended for cut-off and grooving applications on non-ferrous metal workpieces.

Installation Notes

Insert seating and clamping should be performed with the machine powered down and the spindle fully stopped. Use the appropriate torx or hex key as specified by the toolholder manufacturer when securing the insert clamp. Verify insert hand orientation and lead angle direction match the toolholder before operation. Follow your facility safety procedures and applicable machine tool standards when changing cutting inserts.
