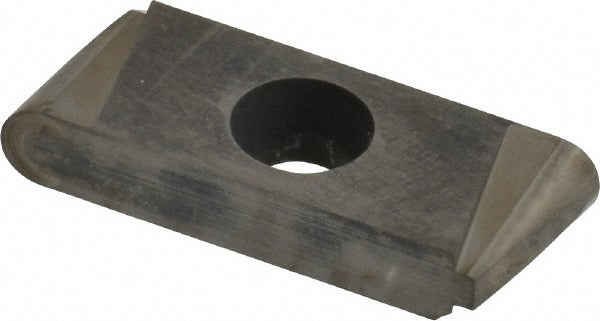

Nikcole Mini-systems GIE-7-SC-3L C2 Carbide Turning Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE-7-SC-3L C2 is a solid carbide turning insert designed for grooving operations on CNC lathes and turning centers. Built to the GIE insert style with a C2 material grade, this left-hand insert delivers consistent performance in grooving applications where precise depth control and edge integrity matter. The insert measures 17.00 mm (0.6693 inches) in length with a maximum depth of cut of 0.2360 inches, making it well suited for shallow to mid-depth grooving passes. Screw-type holding secures the insert firmly in the pocket during operation. This part is sold individually but requires a minimum order quantity of 10 units.

This insert is intended for use in metalworking turning applications, specifically grooving operations on lathes and turning centers. The left-hand configuration suits setups where the tool approaches the workpiece from the left. Machinists and CNC operators working in production or maintenance environments will find this insert appropriate for light to moderate grooving tasks in standard metal alloys. It belongs to the NIKCOLE Mini-Systems series, which is designed around compact tooling for precise, small-feature work.

Key Features

• Solid carbide construction with C2 material grade for wear resistance in grooving
• Left-hand insert orientation for compatible toolholder setups
• GIE insert style with screw-type holding method for secure seating
• Maximum depth of cut of 0.2360 inches for controlled grooving passes
• Insert length of 17.00 mm (0.6693 inches) within the 0.6500 to 0.7000 inch length range
• Shape code E geometry suited to grooving multi-use application

Compatibility

Designed for use in toolholders compatible with the GIE-7 insert size code within the NIKCOLE Mini-Systems series, using screw-type insert retention.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Power down and lock out the machine before seating or replacing the insert. Use the appropriate torx or hex key to tighten the clamp screw to the toolholder manufacturer specification. Inspect the insert pocket for debris or damage before seating to ensure proper contact and alignment.
