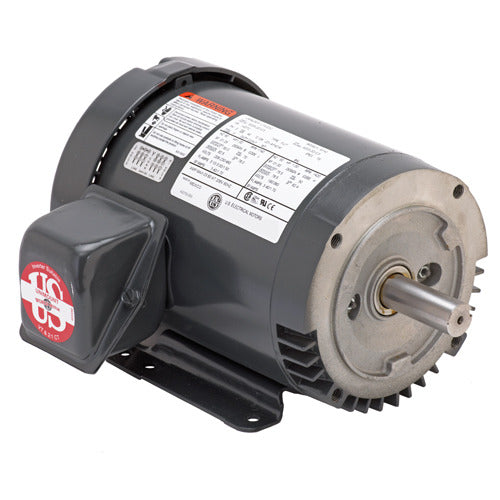

US Motors U1P3DC General Purpose Motor 1 HP 145TC Frame 208-230/460V AC Voltage 1200 RPM

Product Description

The US Motors U1P3DC is a general-purpose motor designed for various industrial applications. This motor operates at one horsepower and a nameplate speed of twelve hundred RPM. It features a frame size of one hundred forty-five TC and can operate on voltages ranging from two hundred eight to four hundred sixty volts AC.

• Amperage rating: 3.6-3.5/1.8
• Enclosure design: Totally Enclosed Fan-Cooled (TEFC)
• Mounting type: C-Face / Footed

Product Highlights

This three-phase motor is ideal for equipment such as fans, blowers, compressors, and pumps. It has a service factor of 1.25 and is suitable for continuous duty applications.

Product Information

Standard Information

• Brand: US Motors
• MPN: U1P3DC

Technical Specifications

• Power: 1 HP
• RPM: 1200
• Voltage: 208-230/460V
• Frame Size: 145TC
• Phase: Three
• Amperage: 3.6-3.5/1.8
• Enclosure: TEFC
• Efficiency: 82.5%
