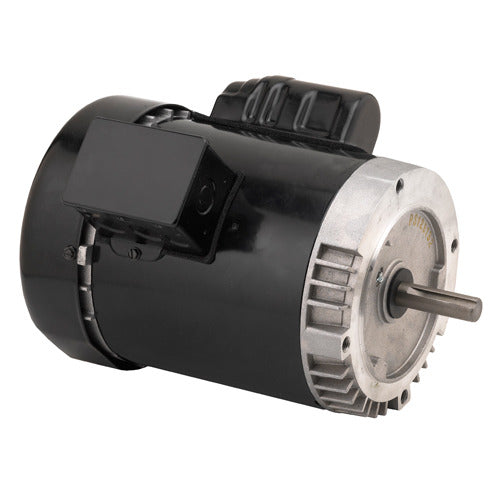

US-Nidec T12CA1JCR General Purpose Motor 1/2 HP 3600 RPM

Product Description

The US-Nidec T12CA1JCR General Purpose Motor is a versatile option for various applications requiring reliable performance. This motor, with model number T12CA1JCR, is designed for capacitor start, providing a horsepower of 1/2 and a speed of 3600 RPM. It features a 56 frame size and has a diameter of 6.5 inches. The motor operates on a single phase and offers a voltage range of 115/208-230 volts.

• Electrical Type: Cap Start
• Horsepower: 1/2
• RPM: 3600

Product Highlights

This general purpose motor from US-Nidec is crafted from rolled steel material and features an auto overload protection with ball bearings ensuring smooth operation. The TEFC enclosure and C-Face mounting without a foot make it suitable for various industrial settings.

Product Information

Standard Information

• Brand: US-Nidec
• Model Number: T12CA1JCR

Technical Specifications

• Horsepower: 1/2 HP
• RPM: 3600
• Voltage: 115/208-230V
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: C-Face / Footless
• Amperage: 8.0/3.8-4.0
• Shaft Type: Single
• Insulation Class: B
• Service Factor: 1.15
