NICOR Nicor PRCP2 Prime Chime Plus V2 120VAC/20VAC (1 Kit)
NICOR Nicor PRCP2 Prime Chime Plus V2 120VAC/20VAC (1 Kit)

Nicor PRCP2 Prime Chime Plus V2 120VAC/20VAC (1 Kit)

Brand: NICOR
SKU: PRCP2
Availability: In Stock

Ships same day if ordered by 12 pm
$78.59
$78.59
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

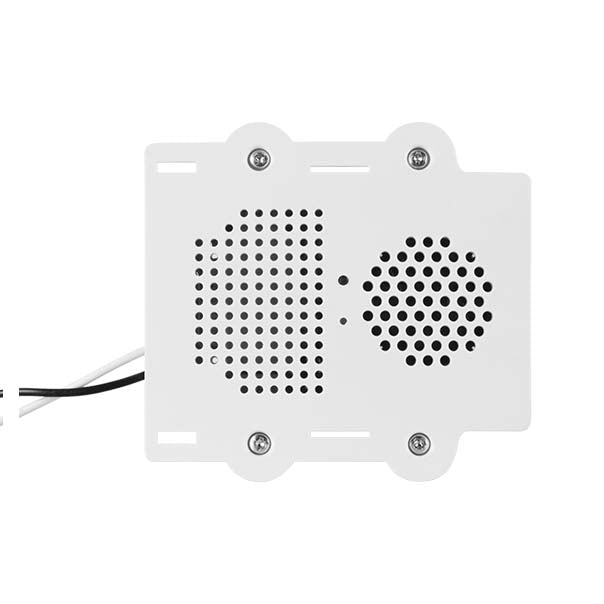

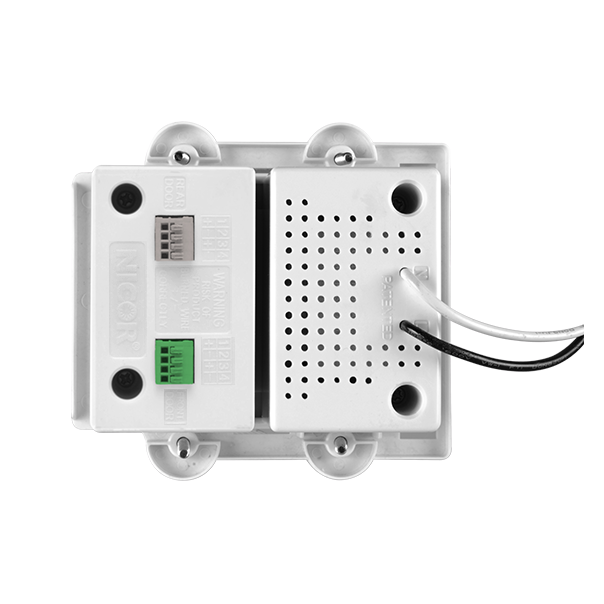

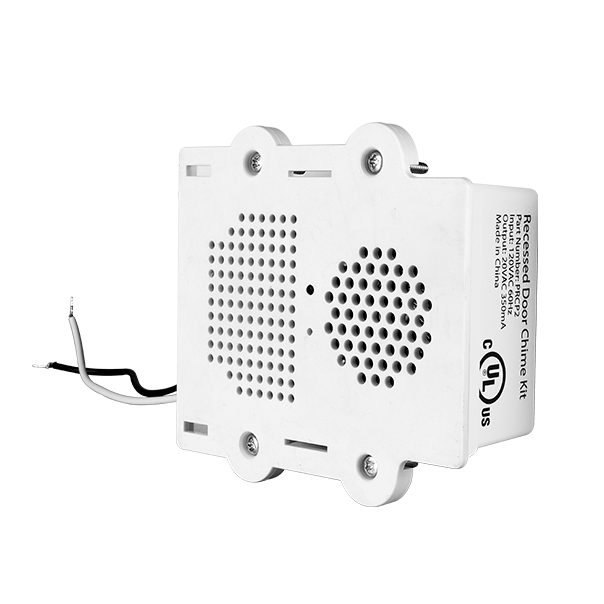

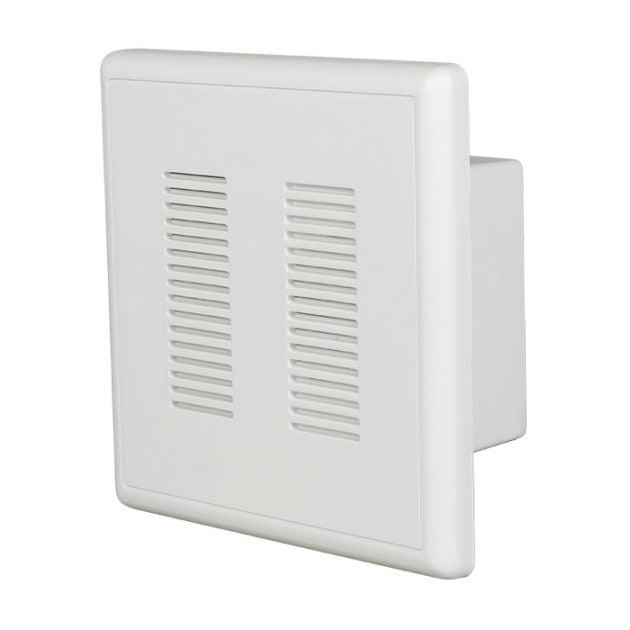

The Nicor PRCP2 is a recessed door chime hub kit that integrates line voltage and low voltage in a single unit with a built-in transformer. It provides five selectable chime tones and five volume levels, supports many popular video doorbell units, and can be wired to two separate doors with unique tones or daisy-chained for additional coverage. The kit includes illuminated push-buttons, mounting hardware, and a paintable screwless ABS faceplate for flush installation in a standard two-gang box.

  • Integrated transformer: Input 120VAC/60Hz, output 20VAC; combines line and low voltage in one unit
  • User settings: Five selectable chime melodies and five selectable volume levels; voice-guided setup
  • Install and wiring: Paintable screwless ABS faceplate, fits standard two-gang dual-voltage wall box; supports two-door wiring and daisy chaining

Product Highlights

Recessed chime hub with built-in transformer, five tones and volumes, includes three illuminated buttons and paintable faceplate

Product Information

Standard Information

  • Brand: NICOR
  • Manufacturer Part Number: PRCP2
Technical Specifications
Brand
NICOR
MPN
PRCP2
Model Name
PrimeChime Plus 2
Input Voltage
120 VAC / 60 Hz
Output Voltage
20 VAC
Integrated Transformer
Yes
Chime Tones
Five selectable (Ding Dong, Westminster, 3-Note, 5-Note, 7-Note)
Volume Levels
Five selectable
Number of Buttons Included
Three (one decorative illuminated button and two standard illuminated push-buttons)
Faceplate Material
ABS
Faceplate Finish
Matte, paintable, screwless
Mounting Type
Recessed; installs in standard two-gang dual-voltage wall box
Daisy Chainable
Yes (maximum 200 ft total wire length)
Compatible Wire Gauge
18–22 AWG
Compatibility
Expanded compatibility with many popular video doorbell units (see manufacturer compatibility list)
Listings & Certifications
UL Certified; FCC Class B; Patent Pending
Includes
One decorative illuminated button, two standard illuminated push-buttons, mounting hardware, installation instructions
Package Quantity
1
