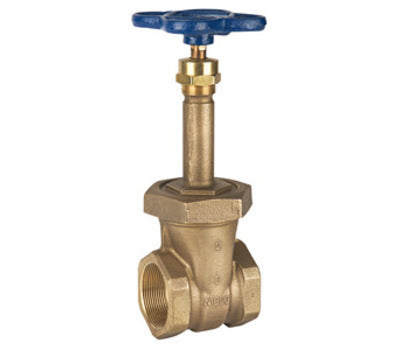

NIBCO T134 3/4 in. NPT Bronze Gate Valve

Product Description

The NIBCO T134 3/4 in. bronze gate valve is a durable, multi-turn shutoff valve designed for commercial and industrial fluid control applications. Built with a cast bronze body and rising stem design, it provides a clear visual indication of valve position while ensuring dependable shutoff performance. Its female NPT threaded connections allow for straightforward installation in a wide range of piping systems including water, steam, air, and general utility services.

Product Highlights

• Rising stem design for visual open and closed indication

• Solid wedge gate for tight, reliable shutoff

• Union bonnet allows easier maintenance and in-line servicing

• Female NPT threaded ends for secure, simple installation

• Bi-directional flow capability

• Dezincification-resistant bronze construction for durability

• Suitable for water, HVAC, steam, compressed air, and gas systems

Technical Specifications

• Brand: NIBCO

• Model: T134

• Valve Size: 3/4 inch

• Connection Type: Female NPT (FNPT)

• Material: Cast Bronze

• Pressure Rating: 300 PSI CWP (non-shock cold working pressure) / 150 PSI saturated steam up to 353°F

• Stem Type: Rising stem

• Operator: Handwheel
