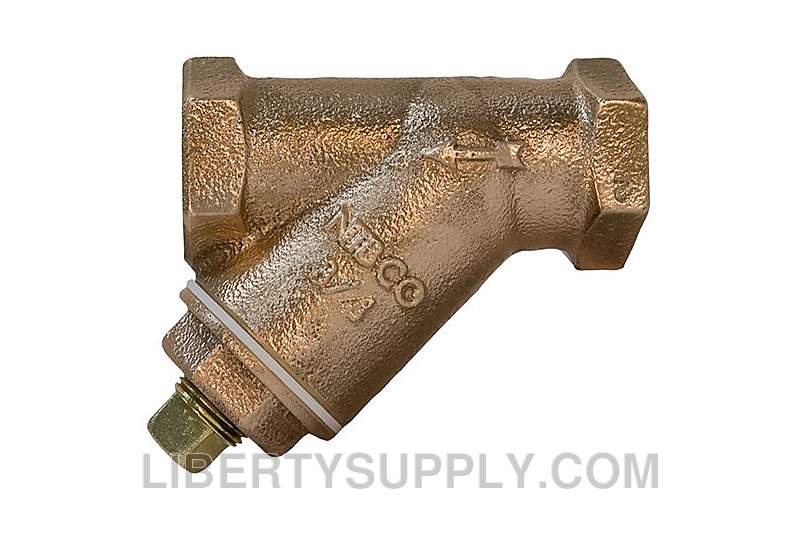

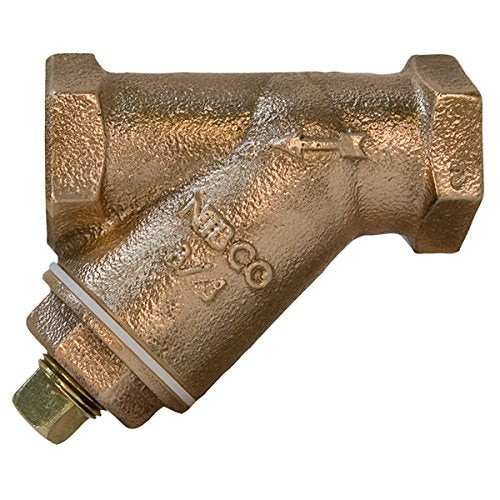

NIBCO VALVES T-221-A Bronze Y-Strainer

Product Description

The NIBCO VALVES T-221-A is a bronze Y-strainer used to filter solids from steam, gases, or liquids in piping systems. It includes a twenty-mesh stainless steel wire screen to safeguard downstream equipment such as valves, regulators, and meters from debris and other contaminants. This product features female threaded end connections for easy installation and a tapped cap with a blow-off plug for effective screen maintenance. The T-221-A conforms to ANSI B1.20.1 standards and is resistant to dezincification.

• Equipped with a twenty-mesh stainless steel wire screen.
• Features threaded end connections and a tapped cap with a plug.
• Designed for use with steam, gases, and liquids.

Product Highlights

The Y-Strainer is essential for protecting valuable equipment in various fluid systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: T-221-A

Technical Specifications

• Material: Bronze, Stainless Steel
• Strainer Type: Y-Strainer
• End Connection Type: Threaded
• End Connections: FNPT
• Mesh Size: 20
• Pressure Class: 125#
• Maximum Temperature: 353 °F
• Saturated Steam Pressure: 125 psi / 8.6 bar
• Cold Working Pressure: 200 psi / 13.8 bar
• Standards: ANSI B1.20.1
• Fitting Sizes: 1-1/4 inches
• Length: 5.44 inches
• Width: 5.01 inches
• Height: 2.99 inches
