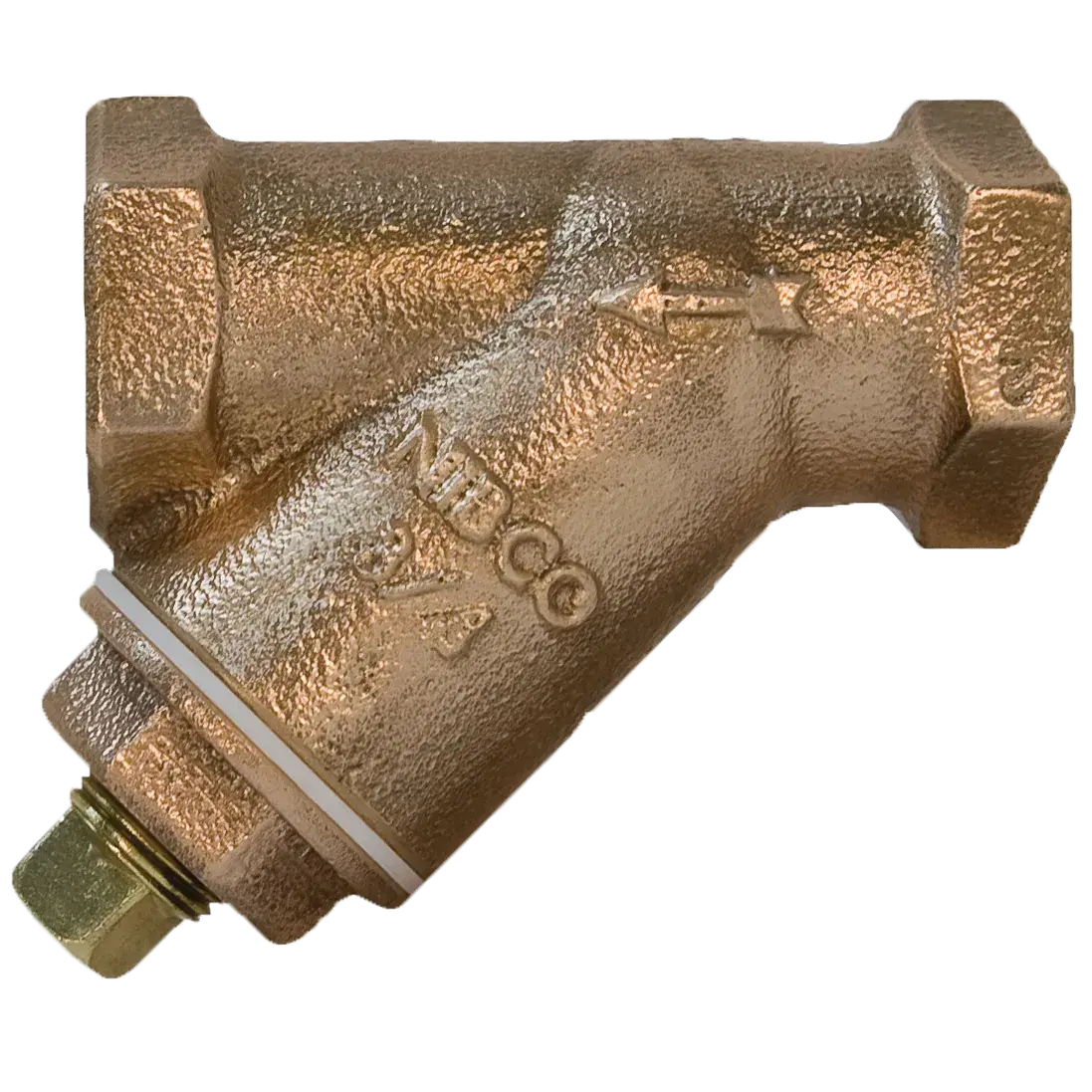

Nibco T221A-3/4 Y-Strainer (3/4 in)

Product Description

Nibco T221A-3/4 is a bronze Y-strainer that removes solids from steam, gas, and liquid piping systems using a 20-mesh 304 stainless steel wire screen. The unit features Class 125 threaded FNPT end connections, a tapped cap with plug for maintenance, and is dezincification resistant. It is rated for saturated steam service to 353�F (125 psi) and non-shock cold working pressure to 200 psi.

• 20-mesh 304 stainless steel screen with tapped cap and plug for cleaning
• Class 125 female threaded (FNPT) end connections; Y-pattern design
• Rated to 125 psi saturated steam at 353�F (178�C) and 200 psi non-shock cold working pressure

Product Highlights

Bronze Y-strainer, 3/4 in nominal size, 20-mesh stainless screen, tapped cap with plug, Class 125 FNPT connections, 125 psi saturated steam at 353�F and 200 psi non-shock

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T221A-3/4
• Country of Origin: Domestic

Technical Specifications

• Brand: Nibco
• Manufacturer Part Number: T221A-3/4
• Model / Series: T-221-A
• Product Name: Y-strainer (Wye)
• Nominal Size: 3/4 in
• Fitting Size: 3/4 in
• End Connections: Class 125 threaded (FNPT), female x female
• Strainer Type: Y-pattern (wye)
• Body Material: Bronze (ASTM B62 C83600)
• Cap Material: Bronze (ASTM B62 C83600)
• Screen Material: 304 stainless steel (ASTM E2016)
• Mesh Size: 20 mesh
• Cap/Plug: Tapped cap with plug (bronze plug)
• Seal Material: PTFE
• Maximum Temperature: 353�F (178�C)
• Saturated Steam Rating: 125 psi (8.6 bar) to 353�F (178�C)
• Cold Working Pressure (non-shock): 200 psi (13.8 bar)
• Pressure Class: 125#
• End-to-End Distance: 3.25 in
• Pipe Size to Vertical Dimension: 2.09 in
• Media Handled: Steam, water, gas, liquid
• Recommended Applications: Protect valves, regulators, meters from rust, pipe scale and dirt
• Dezincification Resistance: Dezincification resistant
• Standards / Conformance: ANSI B1.20.1
• ASTM References: ASTM B-16 C36000; ASTM B-62 C83600; ASTM B-584 C84400; ASTM E-2016; ASTM E-674
• Drinking Water Use Restriction: Not for use in U.S. drinking water applications after January 3, 2014
• Origin: Domestic
• UPC: 039923280350
