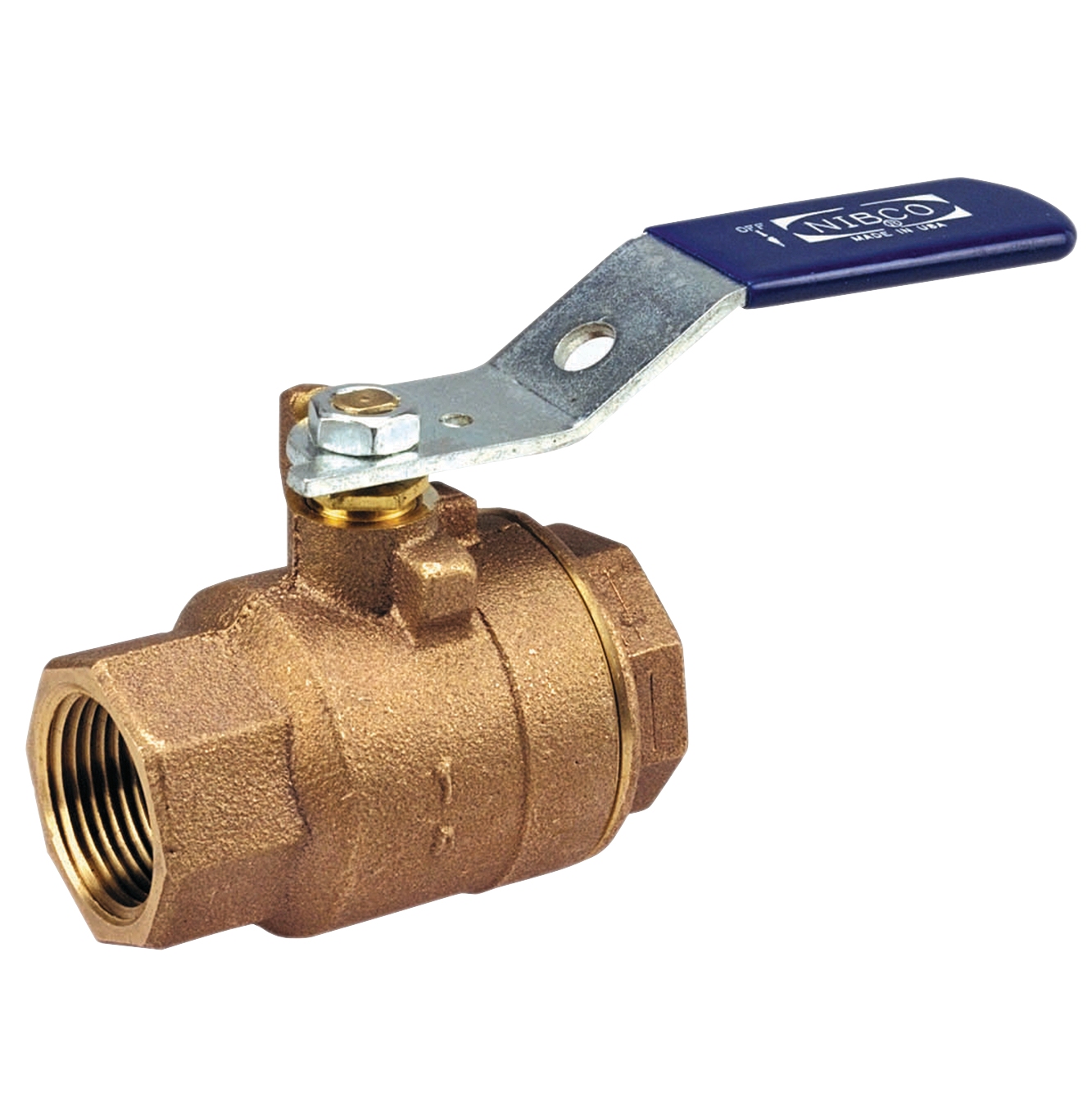

Nibco T-585-70-66-LX-114 Full Port Bronze Ball Valve

Product Description

The NIBCO T-585-70-66-LX-114 is a full port, quarter-turn bronze ball valve designed for threaded installation in commercial and light industrial piping systems. The full port design minimizes flow restriction, making it well suited for applications where pressure drop must be kept low. The valve opens and closes with a 90-degree handle rotation, allowing fast manual shutoff. Construction in bronze provides corrosion resistance across a wide range of media. Licensed plumbers and HVAC technicians are the primary installers of this valve in mechanical system applications.

This valve is intended for use in commercial and light industrial process piping. Suitable media include hot and cold domestic water, HVAC hydronic circuits, low pressure steam, compressed air, LP gas, natural gas, and aggressive water service. The threaded end connections make it compatible with standard NPT pipe assemblies commonly found in mechanical rooms, boiler plants, and building utility systems. Its versatility across multiple media types allows a single valve specification to cover a broad range of service conditions on a job site.

Key Features

• Full port bore maintains maximum flow capacity and reduces pressure drop
• Quarter-turn operation enables fast, positive open and close actuation
• Bronze body construction resists corrosion in water, steam, gas, and air service
• Threaded end connections suit standard NPT piping assemblies
• Rated for HVAC, domestic water, low pressure steam, compressed air, LP gas, and natural gas service
• Backed by the NIBCO 5-year 125 percent limited warranty

Compatibility

Designed as an OEM-style threaded bronze ball valve replacement for 1-1/4 inch NPT piping systems in commercial HVAC, plumbing, and light industrial process applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local codes, IPC, and IFGC requirements. Isolate and depressurize the system and drain or purge the line before removing or installing the valve. Apply thread sealant compatible with the intended service media to all male NPT threads before assembly. Consult the NIBCO technical data sheet and installation guides for pressure, temperature, and torque recommendations specific to this valve model.

Technical Specifications

• End Connection: Threaded (NPT)
• Port Type: Full Port
• Body Material: Bronze
• Operation: Quarter-turn (90 degrees)
• Pipe Size: 1-1/4 inches
• Suitable Media: Hot and cold water, HVAC, low pressure steam, compressed air, LP gas, natural gas, aggressive water
• Warranty: 5-year 125 percent limited
• UPC: 039923413130

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-585-70-66-LX-114
