Nibco T-585-70-66 3/4 Two-Piece Bronze Ball Valve Threaded End Connections (3/4 in)

NIBCO
Brand: NIBCO
SKU: T-585-70-66 3/4
Availability: In Stock

Ships same day if ordered by 12 pm
$72.78
$72.78
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

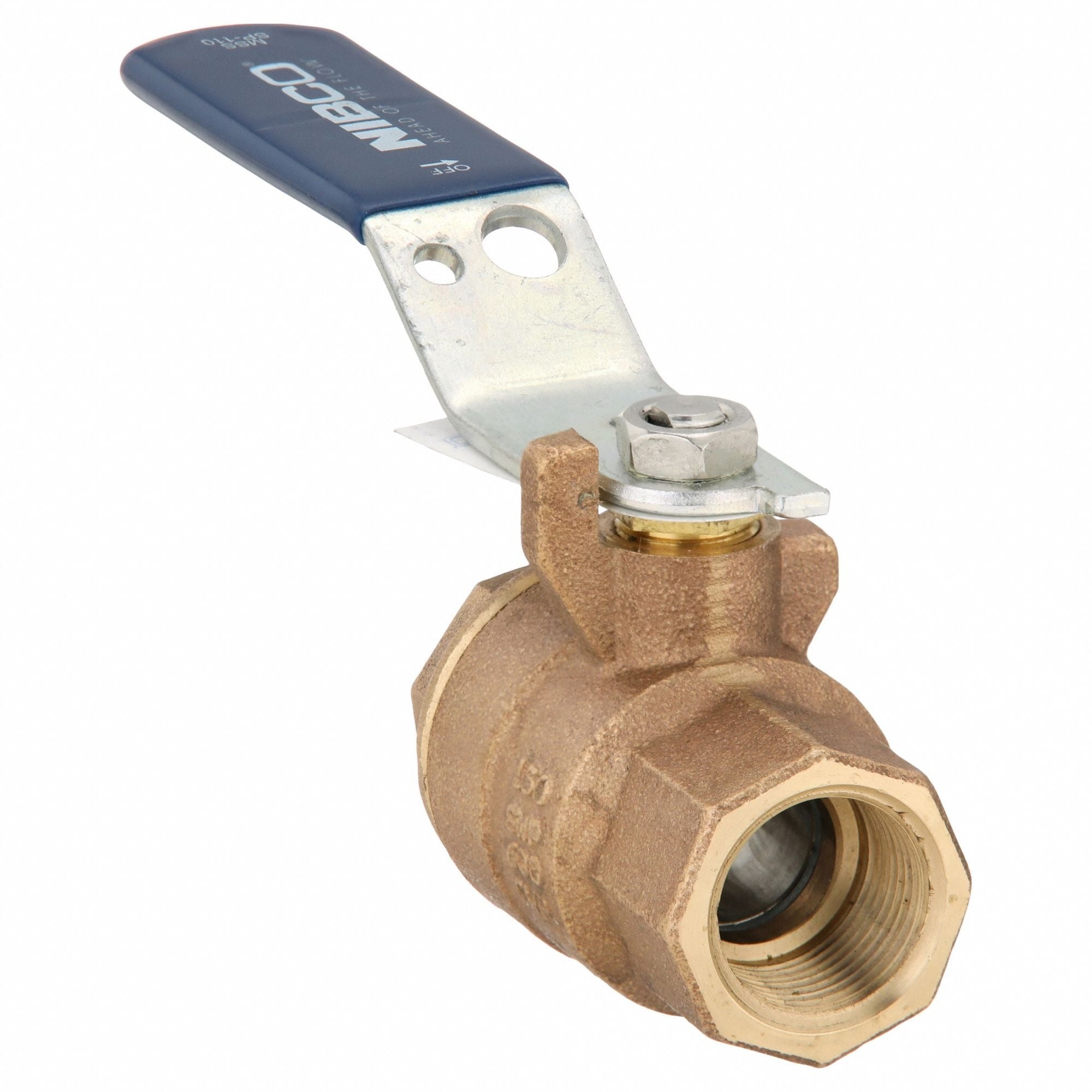

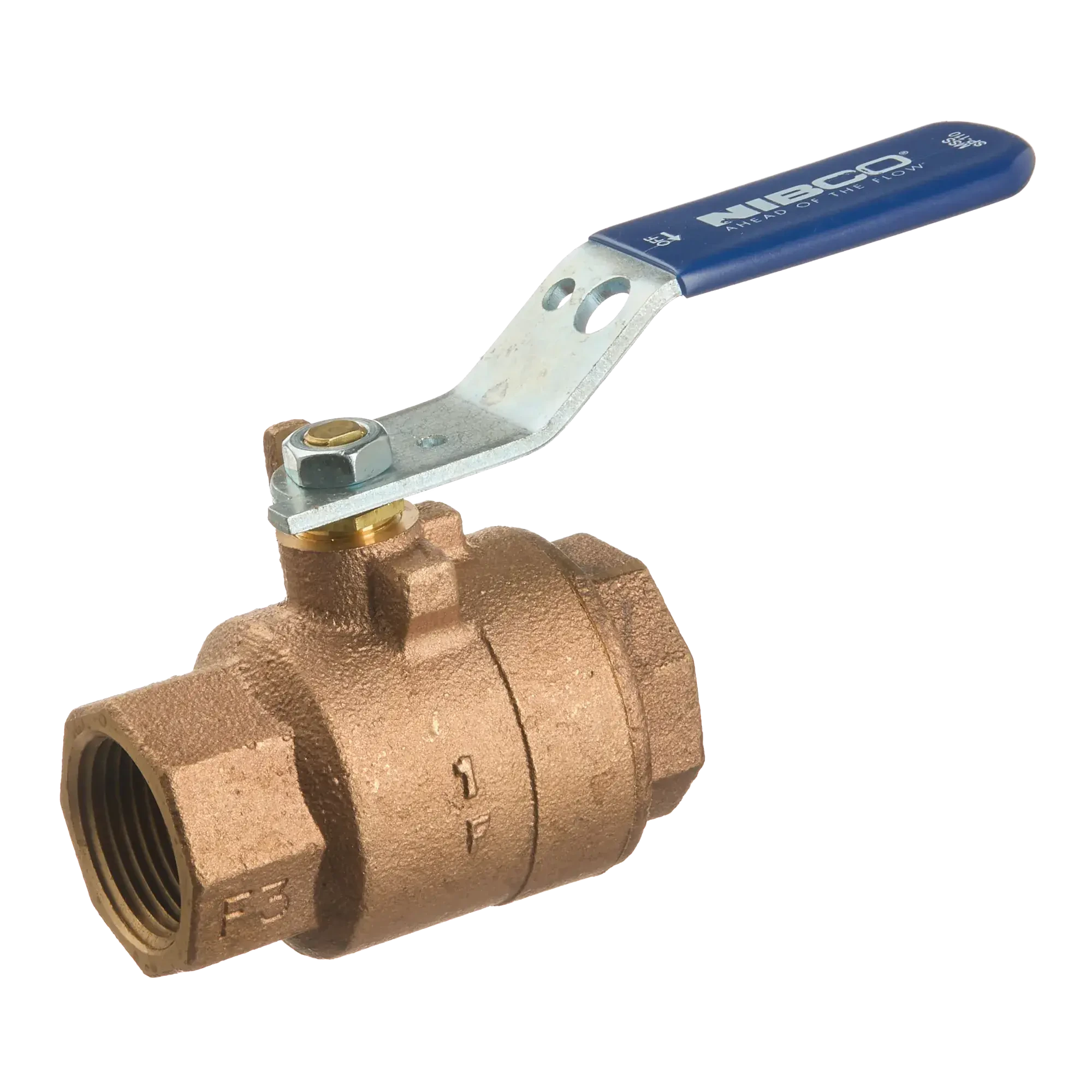

Nibco T-585-70-66 3/4 is a two-piece bronze ball valve with threaded end connections that provides bubble-tight shutoff at 600 psi and a maximum temperature rating of 400°F. The valve features a full port design, stainless steel ball and stem, and a reinforced PTFE seat ring for chemical resistance. The stem is blowout-proof and the body is dezincification resistant; it conforms to MSS SP-110 and is not for potable water use in the U.S.

  • Full port two-piece bronze body with threaded (FNPT) end connections
  • Bubble-tight shutoff rated 600 psi CWP, maximum temperature 400°F; media range -20°F to 400°F
  • Stainless steel ball and stem, reinforced PTFE seats, blowout-proof stem; dezincification resistant

Product Highlights

Full-port 3/4 in bronze ball valve, 600 psi rating, 400°F max, stainless steel trim, reinforced PTFE seats, MSS SP-110 compliant

Product Information

Standard Information

  • Brand: NIBCO
  • Manufacturer Part Number: T-585-70-66 3/4
  • Country of Origin: Poland
Technical Specifications
Brand
NIBCO
Manufacturer Part Number
T-585-70-66 3/4
Model / Fig No.
T-585-70-66
Nominal Valve Size
3/4 in
Body Material
Bronze
Valve Construction
Two-piece, straight
Port Type
Full port
Connection Type
Female NPT (threaded) x Female NPT (threaded)
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Ball Material
Stainless steel
Stem Material
Stainless steel
Seat Material
Reinforced PTFE seat ring
Seal Material
PTFE
Stem Type
Blowout-proof
Handle
Standard lever handle (optional NIB-SEAL locking/insulated handles available)
Handle Material
Zinc-plated steel
Overall Length
2.94 in
Handle Height
2.25 in
Max Pressure (Cold Working / CWP)
600 psi (41.4 bar)
Max Pressure (Steam)
600 psi
Maximum Temperature Rating
400°F
Media Temperature Range
-20°F to 400°F
Resistance
Dezincification resistant
Standards / Certifications
MSS SP-110
Potable Water Use
Not for use in U.S. drinking water applications after January 3, 2014
Vented
Vented
For Media
Water (not intended for potable water applications)
UNSPSC
40141607
Country of Origin
USA (subject to change)
