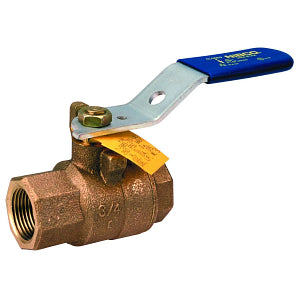

Nibco T-580-70-UL Ball Valve 1-1/2 in

Product Description

The NIBCO T-580-70-UL 2-Piece Ball Valve, with a 1-1/2 in nominal size and FNPT end style, features a bronze body and PTFE softgoods. This valve provides ease of operation with a quarter-turn (90 deg) open to close. It is suitable for commercial, mechanical, and industrial applications.

• Silicon bronze stem
• Blowout-proof stem
• Dezincification resistant

Product Highlights

The two-piece valve features thread end connections for easy installation and a polished chrome brass ball.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: T-580-70-UL-112

Technical Specifications

• Brand: NIBCO
• Actuator Type: Standard Lever Handle
• Ball Material: Brass
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Finish: Polished Chrome
• Inlet to Outlet Length: 4.31 in
• Media: Gasoline/LP Gas/Fuel Oil/Flammable Fluids
• Nominal Size: 1-1/2 in
• Orifice Size: 1-1/4 in
• Port Type: Conventional
• Pressure Rating: 250 psi
• Series: T-580-70-UL
• Softgoods Material: PTFE
• Top to Inlet Center: 3 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
