Nibco Press System PCPX-FP-600A-LF Ball Valve 1/2 in.

Product Description

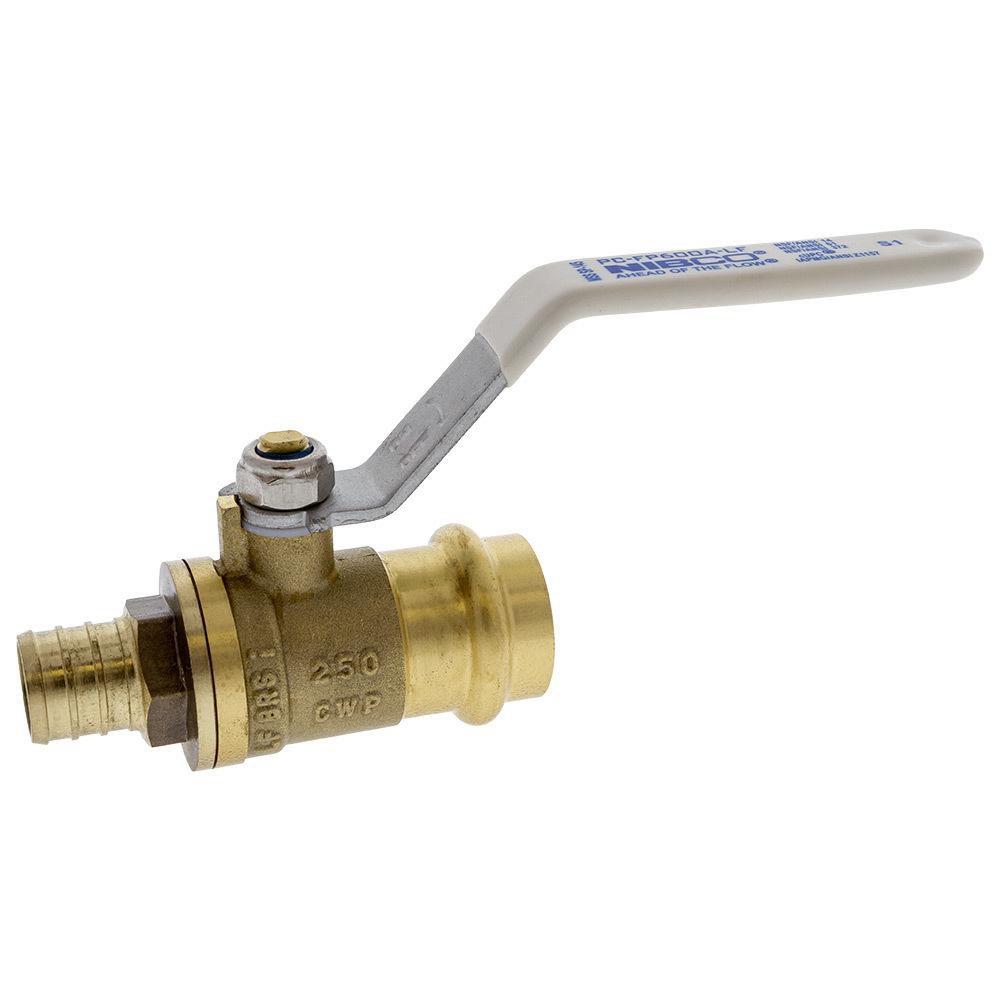

The NIBCO PRESS SYSTEM PCPX-FP-600A-LF is a 1/2 in. ball valve with a pressure rating of 250 psi/17.2 bar non-shock and a maximum service temperature of 250°F. This full port valve features press x PEX end connections, copper-to-copper connections, and a blowout-proof stem. It is suitable for potable water applications.

• Valve pressure rating 250 psi/17.2 bar non-shock
• Maximum service temperature 250°F
• Full port

Product Highlights

This NIBCO ball valve features press x PEX connections, a blowout-proof stem, and a press leak-detection feature.

Product Information

Standard Information

• Brand: NIBCO PRESS SYSTEM
• Manufacturer Part Number: PCPX-FP-600A-LF

Technical Specifications

• ANSI: ANSI 14, ANSI 372, ANSI 61, ANSI Z11157
• ASME: ASME B16.51
• ASTM: ASTM A-321, ASTM B-88, ASTM D-2000
• Collection: PCPX-FP-600A-LF
• End Connection 1: Press
• End Connection 2: PEX Crimp
• End Connections: Press x PEX Crimp
• Handle Material: Steel
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 2-3/4 in
• MSS: MSS SP-110, MSS SP-145
• Material: Brass, Plastic
• Material Type: DZR, PTFE
• NSF: NSF 14, NSF 372, NSF 61
• NSF Certified: Yes
• Pressure - High: 250
• Pressure Class: 250#
• Recommended Valve Application: Potable Water
• Valve Body Material: Brass
• Valve Body Style: 2 piece
• Valve Operator: Quarter Turn Handle
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
