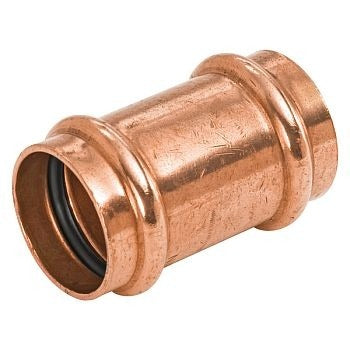

Nibco PRESCOUPLS2 Copper Press Repair Coupling 2 in

Product Description

The NIBCO PRESCOUPLS2 is a 2-inch copper press repair coupling designed for press-fit plumbing connections. It features a Press x Press end configuration with no center stop, allowing the fitting to slide fully over a pipe section for in-line pipe repair without cutting out a long section of the existing line. This type of repair coupling is a standard tool for plumbers performing leak repairs or pipe replacements on copper water distribution systems in both residential and commercial settings.

This repair coupling is suited for copper press systems where a traditional coupling with a stop cannot be used due to limited pipe movement. It is typically installed in tight spaces or mid-run repairs where the technician needs to slide the fitting along the pipe before pressing it into final position. Press fittings eliminate the need for open flame, making this a practical choice in occupied buildings or fire-sensitive environments.

Key Features

• No center stop design allows full slide-through onto existing pipe for repair applications
• Press x Press end connections eliminate the need for soldering or open flame
• 2-inch diameter fits standard copper water pipe
• Copper construction provides corrosion resistance suitable for potable water systems
• Compatible with standard press tooling used on copper press fittings

Compatibility

Designed as an OEM-style replacement and repair fitting for 2-inch copper press piping systems.

Installation Notes

Installation requires a press tool approved for copper press fittings and the correct jaw size for 2-inch connections. Shut off and depressurize the water supply before beginning any pipe repair work. Ensure pipe ends are clean, deburred, and properly marked to confirm full insertion depth before pressing. Follow all applicable plumbing codes, including IPC requirements, for pressure testing after installation.

Technical Specifications

• Size: 2 inches
• End Connection: Press x Press
• Stop Configuration: No stop (repair coupling)
• Material: Copper

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PRESCOUPLS2
