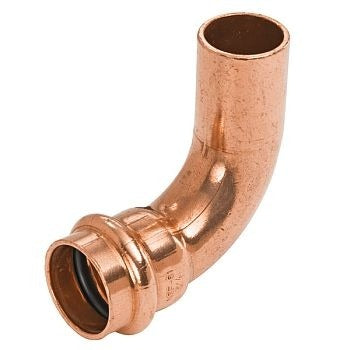

Nibco PRES90STLFTGC12 Copper Press 90 Degree Elbow

Product Description

The NIBCO PRES90STLFTGC12 is a copper 90 degree elbow fitting designed for press-style installation in residential and commercial plumbing and hydronic piping systems. It features an FTG (fitting-to-groove) end on one side and a press end on the other, allowing connection to standard copper tube using a pressing tool rather than open flame. With a nominal size of 0.5 inches, this elbow changes flow direction by 90 degrees while maintaining a secure, leak-resistant joint. It is installed by licensed plumbers and pipefitters working on potable water, radiant heating, and similar copper piping applications.

This fitting is suited for residential and light commercial plumbing systems where press-fit copper connections are specified. The FTG end accepts standard copper tubing for solder or press termination on one side, while the press end requires a compatible pressing tool and press-fit sleeve. Common applications include domestic hot and cold water distribution, hydronic heating loops, and mechanical room piping where torch-free installation is preferred or required by code or job-site conditions.

Key Features

• 90 degree change-of-direction copper fitting for press-fit piping systems
• FTG x Press end configuration for flexible connection options
• 0.5 inch nominal size for standard residential and light commercial copper pipe
• Torch-free press installation reduces fire risk and speeds up work
• Copper construction for compatibility with potable water and hydronic systems

Compatibility

Designed as an OEM-style replacement and standard-fit copper press elbow for 0.5 inch copper press piping systems. Compatible end types are FTG and press per NIBCO PC607-2 series specifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and depressurize the water supply and drain the line before beginning work. The press end requires a manufacturer-approved pressing tool with the correct jaw profile for the fitting size — do not substitute incompatible jaws. Inspect the press sleeve and tubing seating depth before pressing to ensure a complete, leak-free joint.

Technical Specifications

• Nominal Size: 0.5 inches
• End Connection: FTG x Press
• Fitting Angle: 90 degrees
• Material: Copper

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PRES90STLFTGC12
