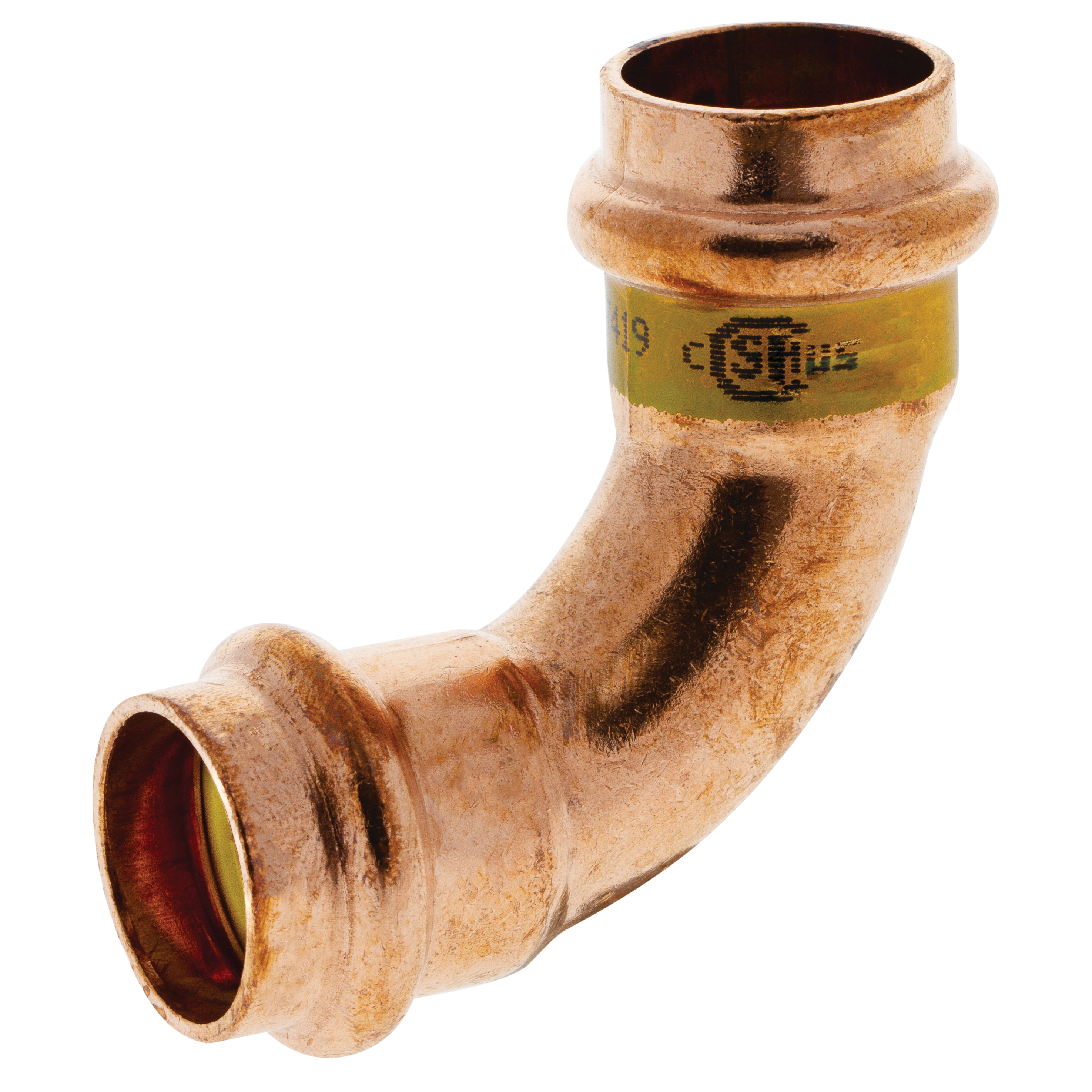

Nibco PCH6071 Press X Press 90 Elbow 1 Inch Copper

Product Description

The NIBCO PCH6071 is a 1-inch press-by-press 90-degree elbow fitting designed for joining seamless copper tubing without solder or open flame. It uses a press-connection system that cold-forms a permanent, leak-tight joint when crimped with a compatible pressing tool. A unique N-shaped witness mark becomes visible on the fitting after proper crimping, providing immediate visual confirmation of a completed connection. The PCH6071 is suited for residential and commercial plumbing, gas distribution, and compressed air systems, and can be installed in above-ground, in-wall, and underground applications.

This fitting is used in residential and commercial piping systems where soldering is impractical or prohibited. Typical installation scenarios include gas supply lines, compressed air distribution, and potable water systems. The press-connection design eliminates the need for open-flame torch work, making it appropriate for retrofit and occupied-space installations where fire risk must be minimized. Licensed plumbers and pipefitters are the primary installers in both new construction and service work.

Key Features

• Press-by-press end connections eliminate the need for soldering or brazing
• N witness mark confirms proper crimp completion at a glance
• Rated for use in gas distribution and compressed air systems in addition to water service
• Suitable for underground installation
• Backed by a 25-year limited manufacturer warranty
• Compatible with standard pressing tools, jaws, and chains designed for copper press systems

Compatibility

Designed for use with seamless copper water tube in residential and commercial gas and compressed air piping systems. Intended for use with compatible copper press pressing tools, jaws, and chains.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, including IFGC requirements for gas applications. Shut off and depressurize the supply line before cutting into any existing system. Use only pressing tools and jaws rated for copper press fittings of this size. Refer to NIBCO technical data sheets and installation guides for full procedure and tool compatibility requirements.

Technical Specifications

• End Connection Type: Press x Press
• Fitting Angle: 90 degrees
• Pipe Size: 1 inch
• Material: Copper
• Application: Water, gas, compressed air
• Underground Rated: Yes
• Warranty: 25-year limited
• UPC: 039923412089

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PCH6071
