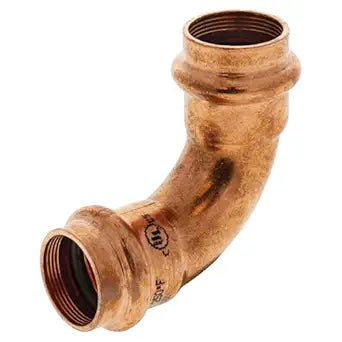

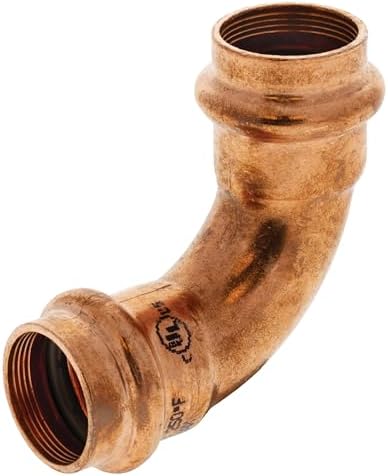

Nibco PC9607LT14 Press 90 Degree Elbow Copper Fitting 1/4 in. OD (Outer Diameter)

Product Description

The NIBCO PC9607LT14 PressACR copper 90-degree elbow features an inboard bead and gray HNBR O-ring. Applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal. This elbow has press connections and provides a method of changing the pipeline direction by 90 degrees when a longer sweep is required.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi

Product Highlights

The NIBCO copper elbow fitting is 1/4 in. in size, constructed of copper, and ideal for use with approved refrigerants and oils.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: PC9607LT14

Technical Specifications

• Size: 1/4 in.
• Material: Copper
• Brand: NIBCO
• Connector Type: Elbow
• Exterior Finish: Copper
• Number of Pieces: 1
• Operating pressure: 700 psi max
• Temperature range: -40°F to 250°F
• Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
• Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
