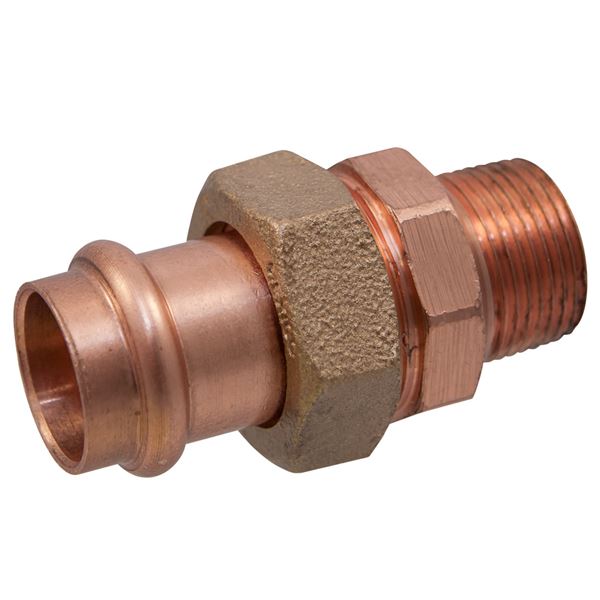

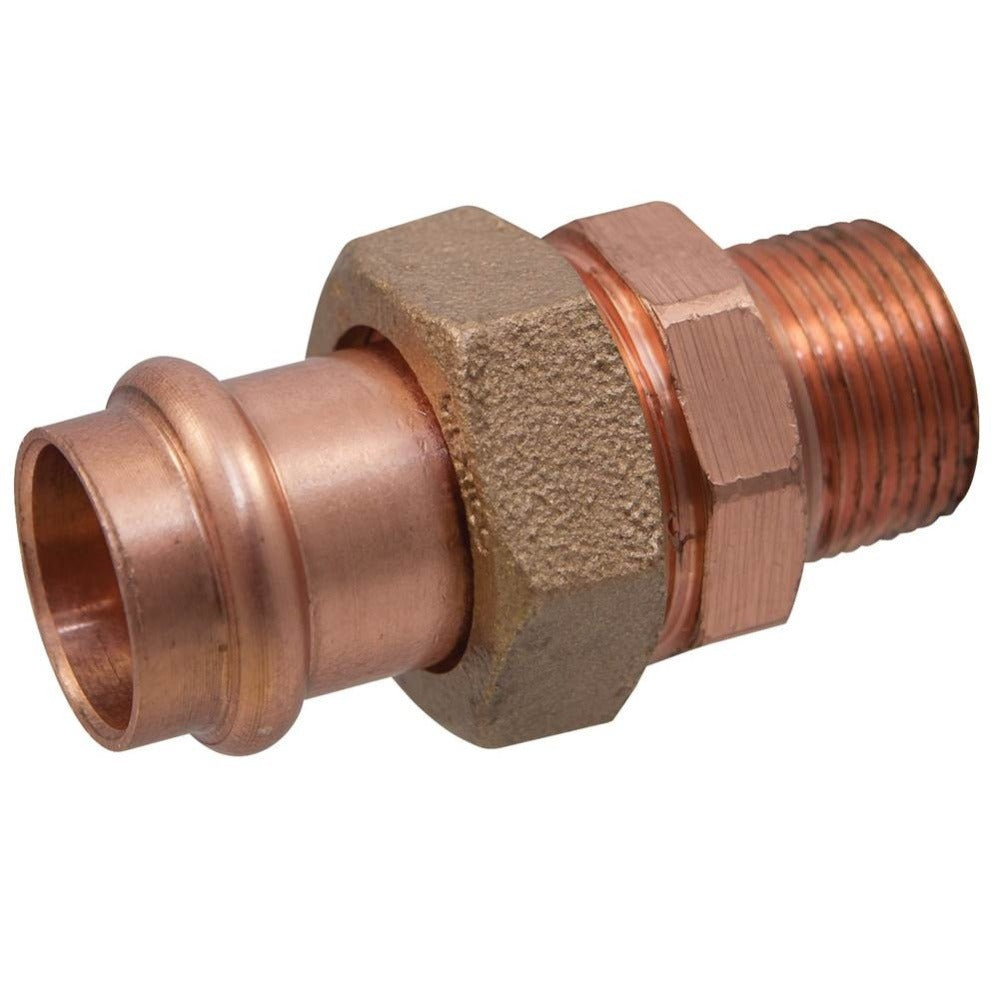

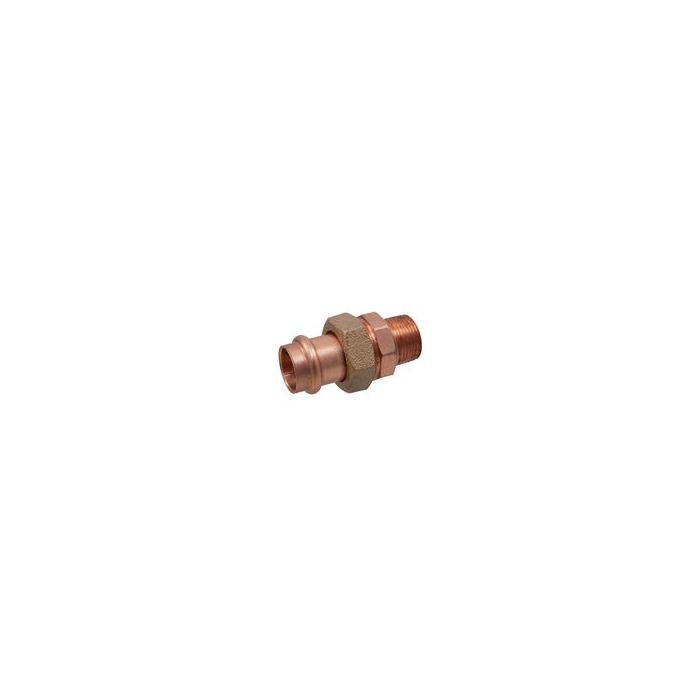

Nibco PC633-4 Union P x M 1/2 (9256800FPC)

Product Description

Nibco PC633-4 is a copper press union (material number 9256800FPC) for joining 1/2-inch copper tubing with a press-to-MNPT connection in potable, hot, chilled and process water and HVAC systems. The fitting uses an inboard bead and EPDM O-ring to form a watertight seal when pressed and shows a visible "N" witness mark when properly crimped. It is lead-free, suitable for underground installation, and rated for 200 psi CWP and -20 F to 250 F.

• Press x MNPT union for 1/2 x 1/2 copper tubing; press installation without solder or flux
• Inboard bead with EPDM O-ring creates a watertight seal; visible "N" witness mark when pressed
• Lead-free copper construction; operating pressure 200 psi CWP (select configurations to 300 psi CWP); temperature range -20 F to 250 F; certified to IAPMO, NSF/ANSI/CAN-61, UPC and CSA requirements

Product Highlights

1/2-inch copper press union with EPDM O-ring and inboard bead; press x MNPT; lead-free; 200 psi CWP; -20 F to 250 F; visible "N" witness mark.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: 9256800FPC
• Country of Origin: USA
