Product Description

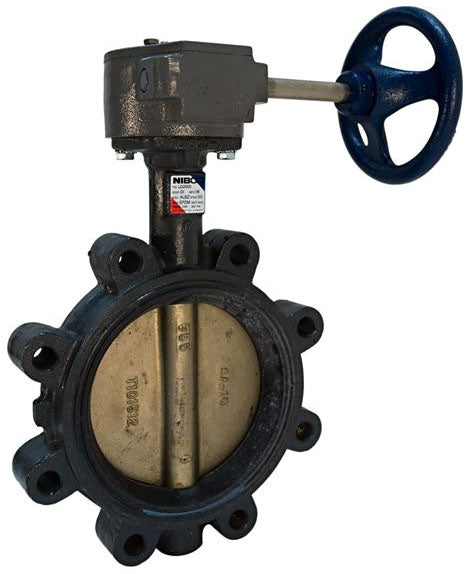

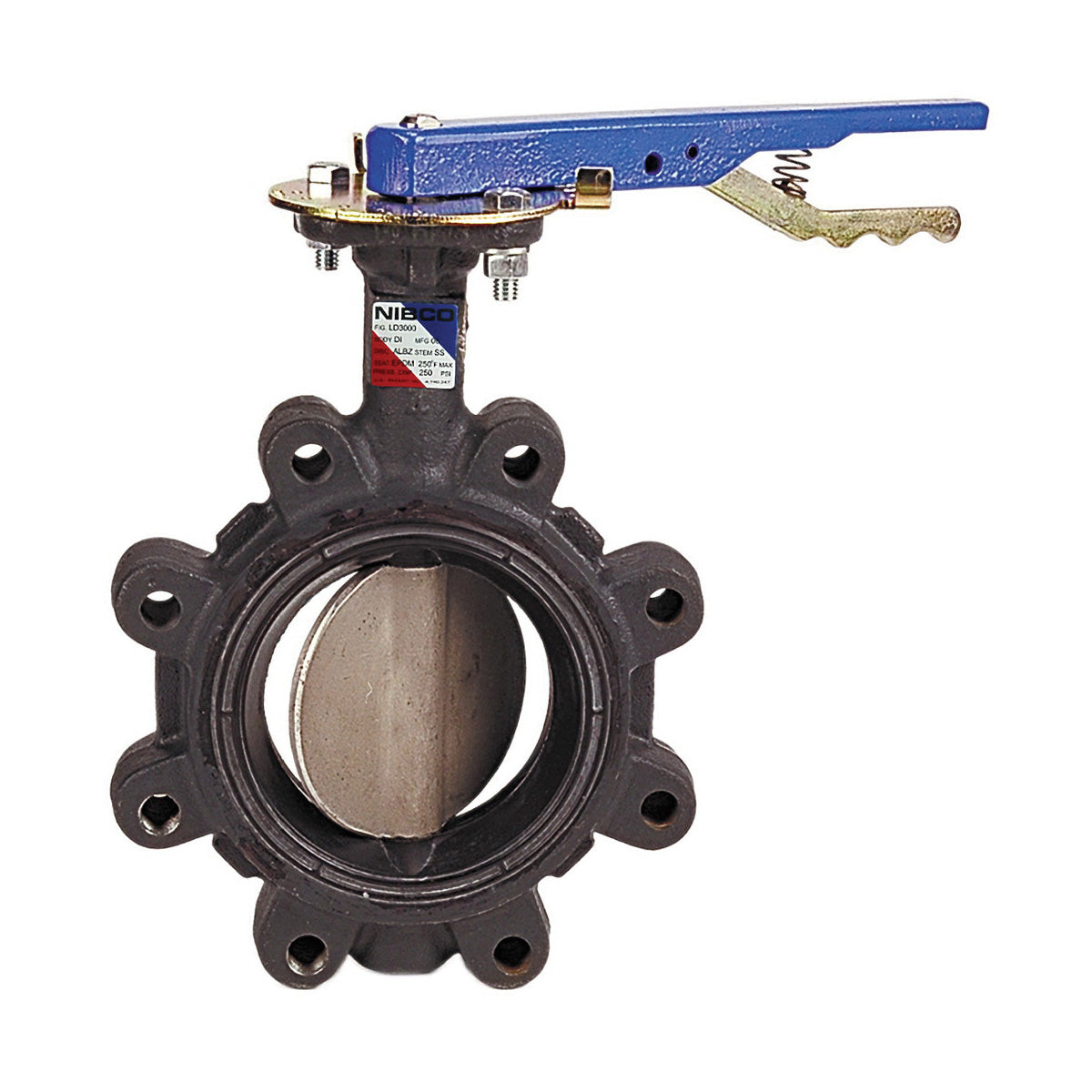

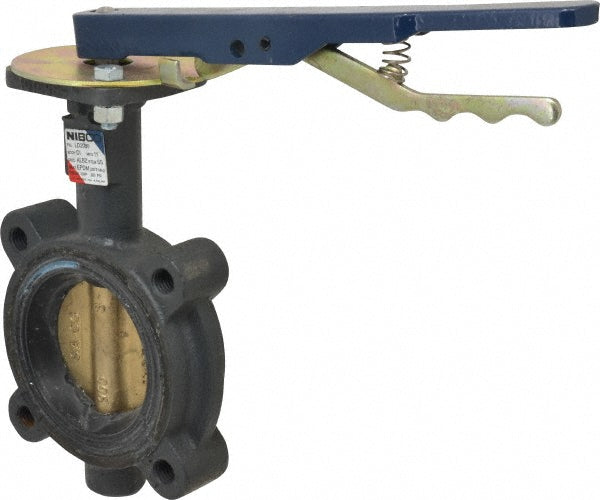

The NIBCO NLG100F lug type butterfly valve provides bi-directional dead-end service without a downstream flange and bubble-tight shutoff at 200 PSI. Features a ductile iron body, aluminum bronze disc, and 416 stainless steel stem. It is designed for commercial, light industrial, HVAC, and vacuum service, as well as hot and cold potable water applications.
- Provides bi-directional dead-end service without a downstream flange
- Features quarter-turn (90 Degrees) open to close operation
- Internal stem/disc geometric drive design eliminates the need for pins or bolts
Product Highlights
Ideal for various applications including HVAC, vacuum services, and potable water systems. Compliant with MSS-SP-67/25, API 609, ISO 9001, and NSF/ANSI 61/372 standards.
Product Information
Standard Information
-
Brand: NIBCO
-
Manufacturer Part Number: NLG100F
-
Country of Origin: UNITED STATES
Technical Specifications
-
Actuation Type: 1/4 Turn, Locking Lever Handle
-
Applicable Standard: MSS-SP-67/25, API 609, ISO 9001, NSF/ANSI 61/372
-
Application: Commercial, Light Industrial, HVAC and Vacuum Service, Hot/Cold Potable Water
-
Body Material: Ductile Iron
-
Catalog Number: NLG100F
-
Disc Material: Aluminum Bronze
-
End To End Distance: 1.812 Inch
-
Inclusions/Features: Infinite Position Plate and Lock, Copper Lower/Upper Bushing, Brass Collar Bushing
-
Liner Material: EPDM Rubber
-
Manufacturer Part Number Additional: LD20003_3IN
-
Nominal Size: 3 Inch
-
Pressure Rating: 200 PSI
-
Product Sub-Type: Butterfly Valve
-
Product Type: Pipes/Valves/Fittings
-
Seal Material: EPDM Rubber
-
Seat Material: EPDM
-
Stem Material: 416 Stainless Steel
-
Temperature Rating: 225 Deg F (Continuous), 250 Deg F (Intermittent)
-
Type: Extended Neck, Lug
-
Series: LD-2000 Series
-
Material Standard (Body): ASTM A536
-
Stem Material Standard: ASTM A582
-
Disc Material Standard: ASTM B148
-
Disc Material Specification: Alloy 955
-
Industry Standards: MSS-SP-67 Compliant, NSF/ANSI 61-8/372 Certified, US Coast Guard Category A
-
Lead Free: Yes
-
Valve Operator: Lever-Lock Handle
-
Turns/Operation: Quarter-Turn
-
Pipe Size (Inch): 3
-
Handle Type: Lever
-
Material Grade: 416 (Stem); 955 (Disc)
-
Overall Height (Decimal Inch): 10.7700
-
Maximum Working Pressure (PSI - 3 Decimals): 200
-
Standards: Vermont Act 193; U.S. Coast Guard Category A; California Health & Safety Code Section 116875; Meet API 609; MSS SP-25 (Markings); Meet MSS SP-67
-
Maximum Working Temperature (F): 250
-
Actuator Type: Locking Handle
-
Media: Water
-
Softgoods Material: EPDM
-
Stem & Pin Material: 416 Stainless Steel (Stem)
