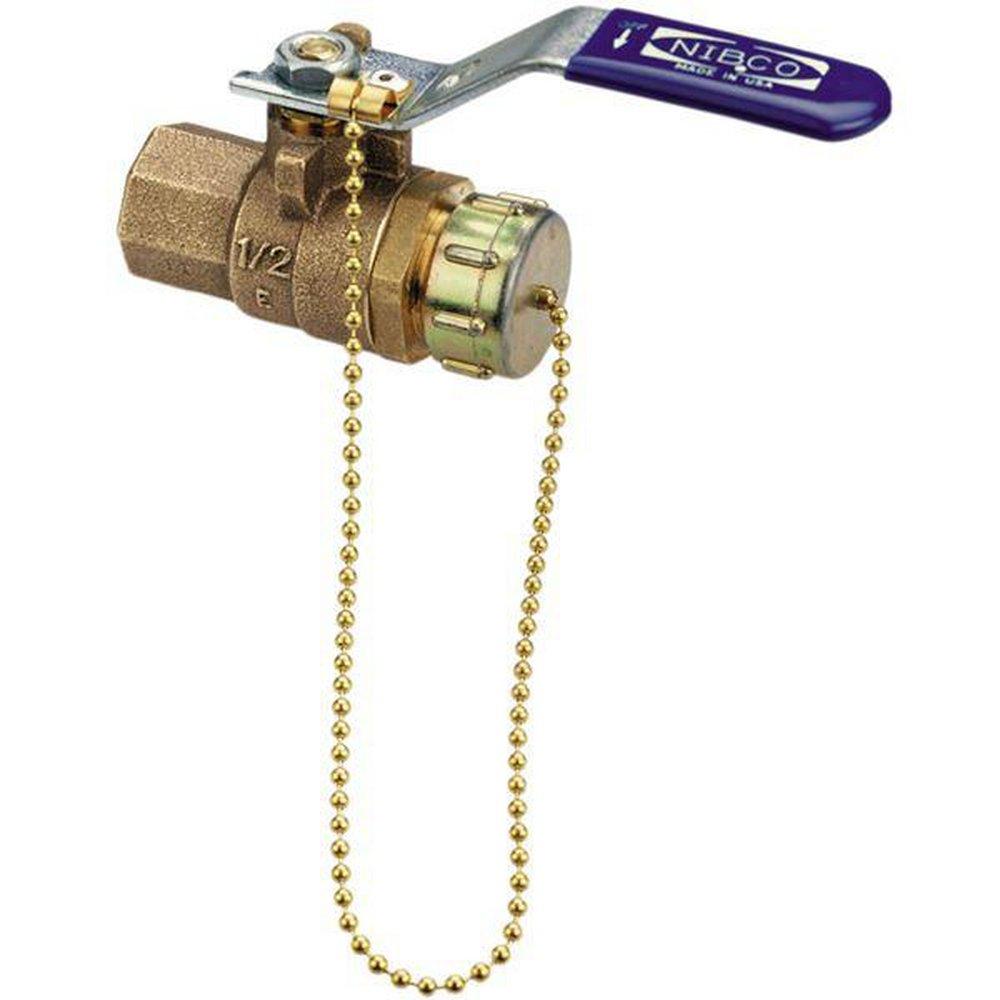

Nibco NLB978X6 T-585-66-Lf-Hc Ball Valve 1/2 x 3/4 in.

Product Description

The NIBCO NLB978X6 is a ball valve with a pressure rating of 600 psi/41.4 bar non-shock cold working pressure. It features a full port, silicon performance bronze alloy, and a stainless steel ball and stem. The valve is dezincification resistant and conforms to MSS SP-110.

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• Full port
• Stainless steel ball and stem

Product Highlights

This NIBCO ball valve is ideal for potable water applications, offering durability and resistance to dezincification.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB978X6

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-276 Type 316, ASTM B-584
• Collection: T-585-66-LF-HC
• End Connection 1: NPT
• End Connection 2: GHT
• End Connections: NPT x GHT
• FM Approved: No
• Handle Material: Steel
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 2-37/50
• MSS: MSS SP-110, MSS SP-145
• Material: Bronze, Stainless Steel, Plastic
• Material Type: RPTFE
• Maximum Temperature: 300
• NSF: NSF 372, NSF 61-8
• NSF Certified: Yes
• Pressure - High: 600
• Pressure Class: 600#
• Recommended Valve Application: Potable Water
• UL Listed: No
• Valve Body Material: Bronze
• Valve Body Style: 2 piece
• Valve Disc Material: Stainless Steel
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Valve Size: 1/2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
