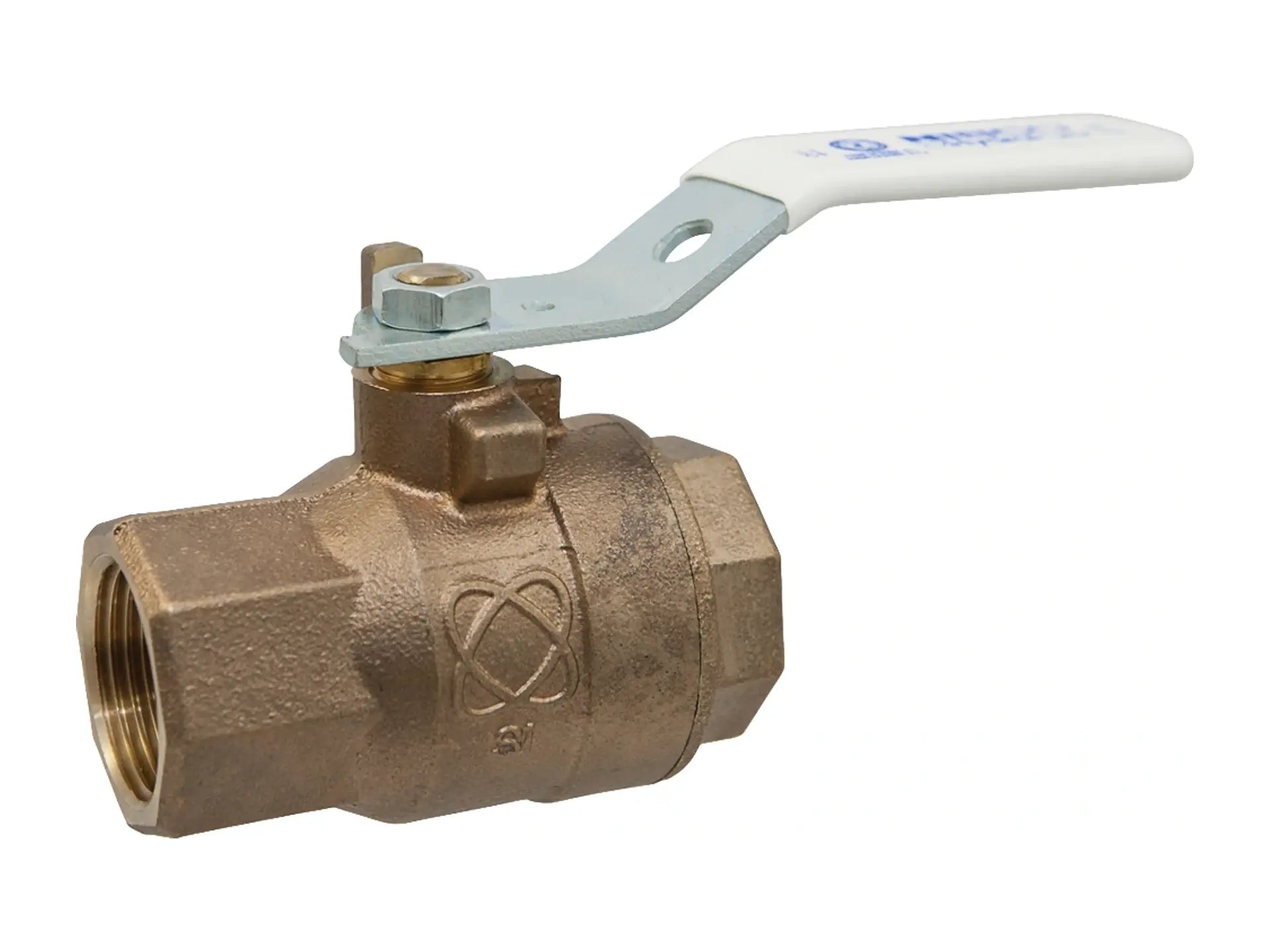

Nibco Nlb95txb Ball Valve

Product Description

The NIBCO NLB95TXB ball valve is made of lead-free Silicon Performance Bronze alloy and has achieved the stringent NSF/ANSI 61/CAN section 8 and NSF/ANSI 372/CAN listings. The two-piece valve provides bubble-tight shutoff at 600 PSI and is dezincification resistant. Ideal for use in applications that deliver water for human consumption.

• Lead-free Silicon Performance Bronze alloy
• NSF/ANSI 61/CAN section 8 and NSF/ANSI 372/CAN listings
• Bubble-tight shutoff at 600 PSI

Product Highlights

The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball, and is ideal for use in residential and commercial construction.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95TXB
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NLB95TXB
• Model: T-585-80-LF-NS
• Series: T-585-80-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1-1/4"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Ball Material: Silicon Bronze
• Ball Stem Material: Silicon Bronze
• Trim Package: Bronze Trim
• Stem Material: Silicon Bronze
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923349361
• Length: 6.48"
• Width: 6.35"
• Height: 2.94"
• Country of Origin: US
