Nibco NLB95HN8 bronze ball valve lead-free 3/4 in.

Product Description

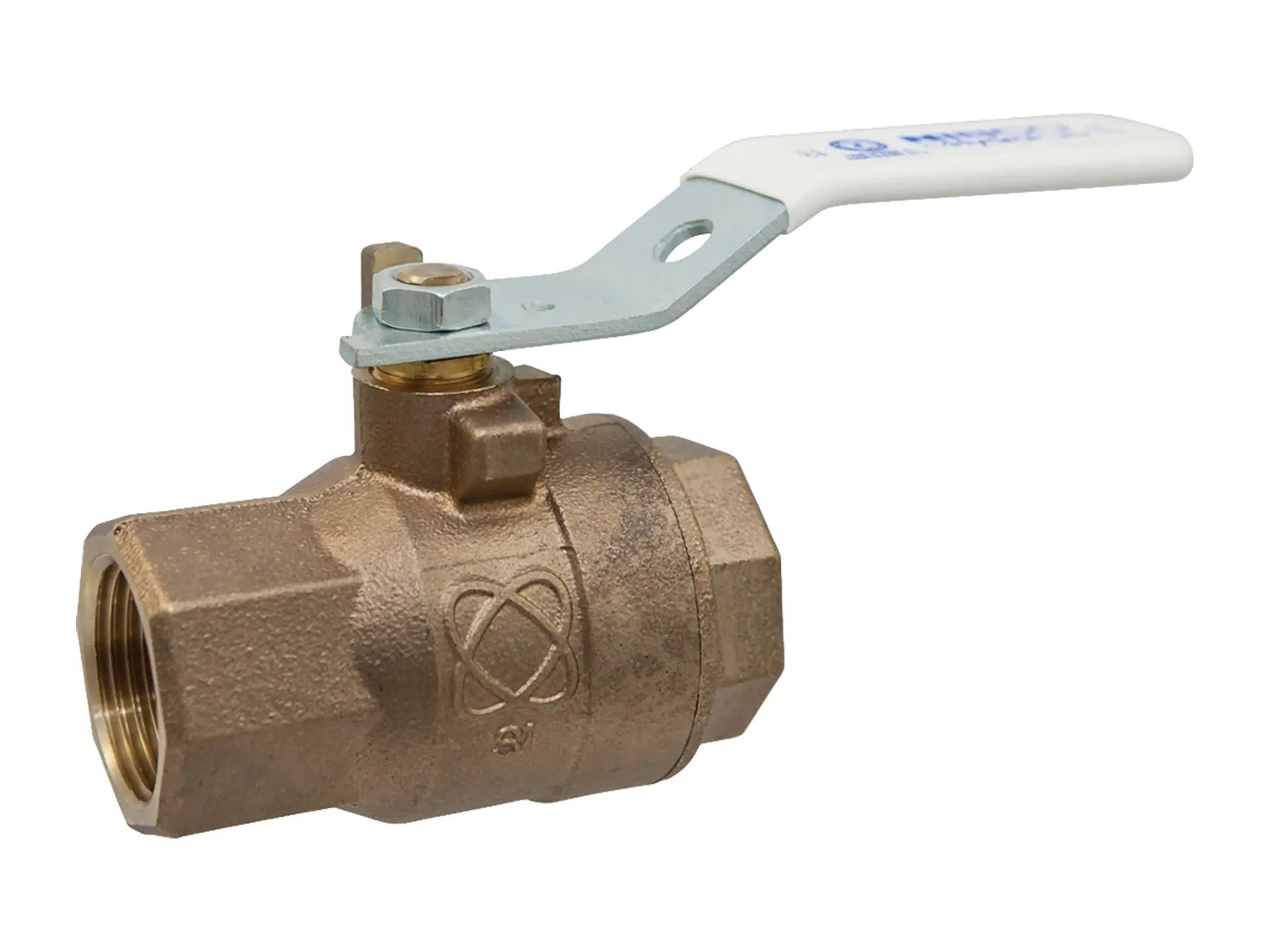

The NIBCO NLB95HN8 is a lead-free ball valve with a stainless steel stem and ball, designed for delivering water for human consumption in residential and commercial construction. This bronze ball valve offers easy quarter-turn (90°) operation. The two-piece valve features threaded ends for easy installation.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300°F
• Full port

Product Highlights

Features Silicon Performance Bronze® body, stainless steel ball and stem, and threaded end connections.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NLB95HN8
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NLB95HN8
• Model: T-585-66-LF-NS
• Series: T-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 3/4"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Stem Material: Stainless Steel
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923446473
• Length: 4.64"
• Width: 4.25"
• Height: 2.25"
• Actuator Type: Blow-Out Proof Stem
• Body Material: Bronze
• End Style: FIPT
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 100 psi
• Temperature Rating: 300 deg F
• Trim Material: Stainless Steel
