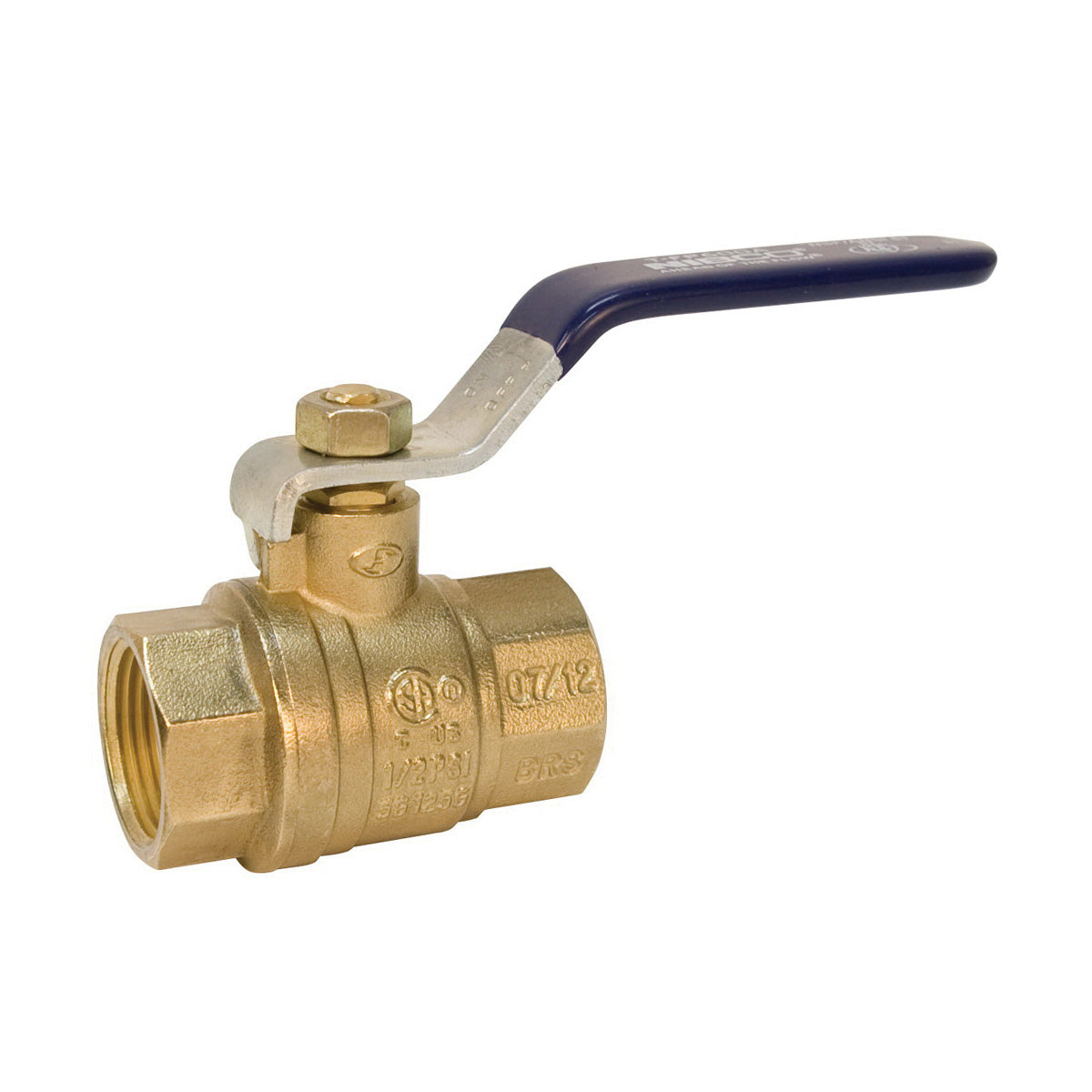

NIBCO NL998H5 2-Piece Ball Valve 3/8 in Nominal FNPT

Product Description

The NIBCO® NL998H5 is a 2-piece ball valve designed for secure shut-off with threaded end connections. This valve features a brass body with PTFE seats and a hard chrome-plated brass ball for enhanced chemical resistance. It is suitable for both hot and cold water and gas applications. The ease of operation is achieved with a quarter-turn (90 degree) rotation to switch from open to closed. This valve also offers convenient installation thanks to its threaded end connections. It is essential to consult the technical data sheet and installation guides provided by NIBCO to ensure proper setup and usage. NIBCO valves are recognized for their reliability and versatility in commercial and residential settings, supported by a two-year limited warranty.

• Bubble-tight shut-off with PTFE seats
• Standard lever actuator for easy operation
• Pressure rated up to 600 psi

Product Highlights

This valve represents a well-established solution for controlling fluid flow across various applications, combining durability with efficiency.

Product Information

Standard Information

• Brand: NIBCO Inc.
• MPN: NL998H5

Technical Specifications

• Type: 2-Piece
• Series: T-FP-600A
• Nominal Size: 3/8 in
• Connection Type: FNPT
• Pressure Rating: 600 psi
• Orifice Size: 0.39 in
• Inlet to Outlet Length: 1.76 in
• Top to Inlet Center: 1.73 in
• Ball Material: Brass
• Body Material: Brass
• Trim Material: Brass Stem and PTFE Ball Seat
• Softgoods Material: Fluorocarbon
• Domestic/Import: Import
