Product Description

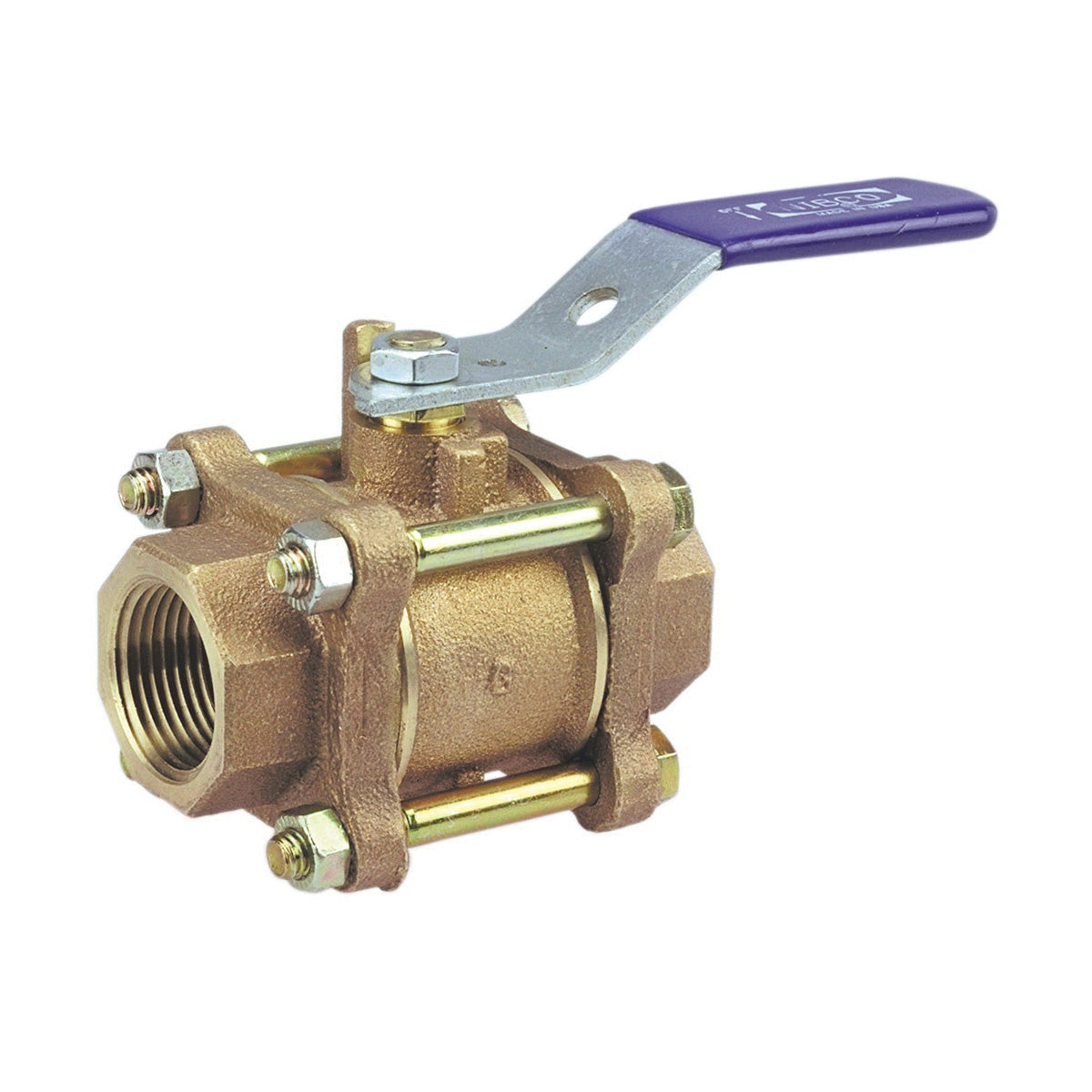

The NIBCO bronze ball valve, model NL99506, delivers reliable bubble-tight shut-off at a pressure of six hundred psi. This three-piece valve is suitable for hot and cold water, gas applications, compressed air, and vacuum service. It excels in condenser and chilled water applications. The valve can be used for isolation as well as throttling, operating from half open to full open. It features an in-line repairable design for added convenience. Operation is simplified with a quarter-turn mechanism that allows for quick opening and closing.
The valve includes a PTFE seat ring and a brass hard chrome plated ball, ensuring high chemical resistance and suitability for many high-pressure settings. For easy installation, the valve comes with threaded ends. An optional NIB-SEAL insulated handle is available to prevent condensate formation.
This NIBCO product is widely adopted in commercial, mechanical, and industrial sectors, certified with a five-year limited warranty by NIBCO INC.
- Three-piece design for easy maintenance
- Full port configuration for high flow
- Temperature rating up to four hundred degrees Fahrenheit
Product Highlights
The NIBCO ball valve is a versatile and durable option for various applications, providing ease of use and reliable performance.
Product Information
Standard Information
-
Manufacturer: NIBCO Inc.
-
Brand: NIBCO
Technical Specifications
-
Actuator Type: Standard Lever
-
Ball Material: Chrome Plated Brass
-
Body Material: Bronze
-
End Style: FNPT
-
Nominal Size: 1/2 in
-
Orifice Size: 1/2 in
-
Pressure Rating: 600 psi
-
Temperature Rating: 400 deg F
-
Inlet to Outlet Length: 2-1/2 in
-
Softgoods Material: PTFE/Fluorocarbon Rubber
