Product Description

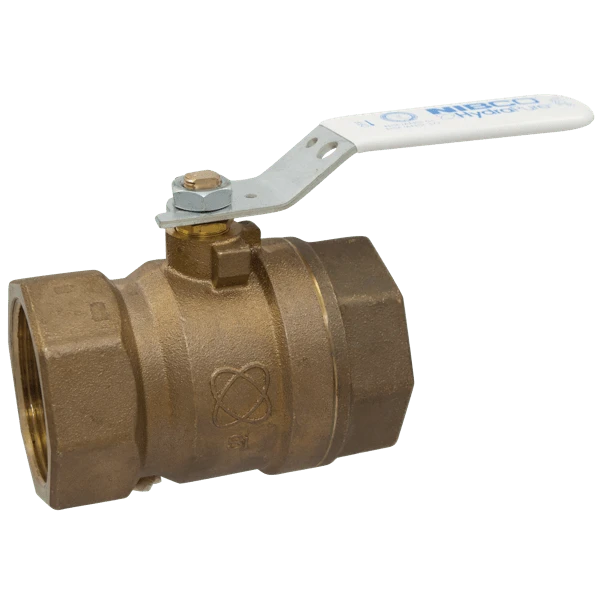

The NIBCO bronze ball valve, MPN NL950XC, provides ease of operation with a quarter-turn (90 degrees) from open to close. This two-piece valve features threaded ends for easy installation. It is suitable for commercial, residential, mechanical, and industrial applications.
- Ease of operation with quarter-turn (90 degrees) open to close
- Two-piece valve features threaded ends for easy installation
- Lead-free silicon bronze body
Product Highlights
This NIBCO ball valve provides a versatile and economical valve option for various applications. It features a reinforced PTFE seat ring with silicon bronze stem and ball.
Product Information
Standard Information
-
Brand: NIBCO
-
Manufacturer Part Number: NL950XC
-
Country of Origin: US
Technical Specifications
-
UPC Code: 039923338969
-
Type: Ball Valve
-
Connection Type: Female NPT Thread (FIPT)
-
Valve Size: 1 1/2
-
Seal Material: RPTFE (Reinforced)
-
Seat Material: Reinforced RPTFE
-
Stem Material: Silicon Bronze ASTM B371 Alloy C69300
-
Ball Material: Stainless Steel
-
Body Material: Lead Free Silicon Bronze
-
Valve Operator: CS Standard Lever Handle
-
Description: T580-80-LF 11/2 THRD CONV PORT BV
-
Turns/Operation: Quarter-Turn
-
Actuator Type: Locking Lever Handle
-
Domestic/Import: Domestic
-
End Style: NPT
-
Inlet to Outlet Length: 3-3/4 in
-
Media: Water
-
Nominal Size: 1-1/2 In
-
Orifice Size: 1-1/4 in
-
Port Type: Conventional
-
Pressure Rating: 600 psi
-
Series: T-580-80-LF
-
Softgoods Material: PTFE
-
Temperature Rating: 300 deg F
-
Top to Inlet Center: 3.09 in
-
Trim Material: Silicon Bronze Stem
-
Manufacturer: NIBCO Inc.
-
Manufacturer #: NL950XC
-
Model: T580-80-LF
-
Ball Body Type: Two-Piece
-
Ball Operator: CS Standard Lever Handle
-
Ball Port Style: Conventional Port
-
Potable Water Code: LL Compliant NSF/ANSI 372
-
Length: 7.98"
-
Width: 4.32"
-
Height: 3.75"
-
Brand Name: NIBCO
-
Sub Brand: Nib-Seal®
-
Item Name: Ball Valve
-
Operator Type: Standard Lever Handle
-
Handle Material: Steel
-
Packing Material: Virgin PTFE
-
Gland Material: Brass
-
Material Standard: Ball: ASTM B283, Body: ASTM B584, End Piece: ASTM B584, Packing Gland: ASTM B16, Stem: ASTM B371
-
Material Specification: Ball: UNS C69300, Body: UNS C87600, End Piece: UNS C87600, Packing Gland: ASTM C36000, Stem: UNS C69300
-
Industry Standards: MSS SP-110/145, IAPMO/ANSI Z1157, ASME A112.4.14/CSA B125.14, NSF/ANSI/CAN-61/372-8, ICC-ES PMG
-
Lead Free: Yes
-
Other Physical Dimension: 3.09 IN Center To Top Of Handle, 6-3/4 IN Handle Length
-
Additional Specifications: Ball Material: Stainless Steel
-
Brand: NIBCO
-
Port: Conventional
-
Nominal Pipe Size: 1-1/2"
-
Stem Material Grade: Grade C69300
