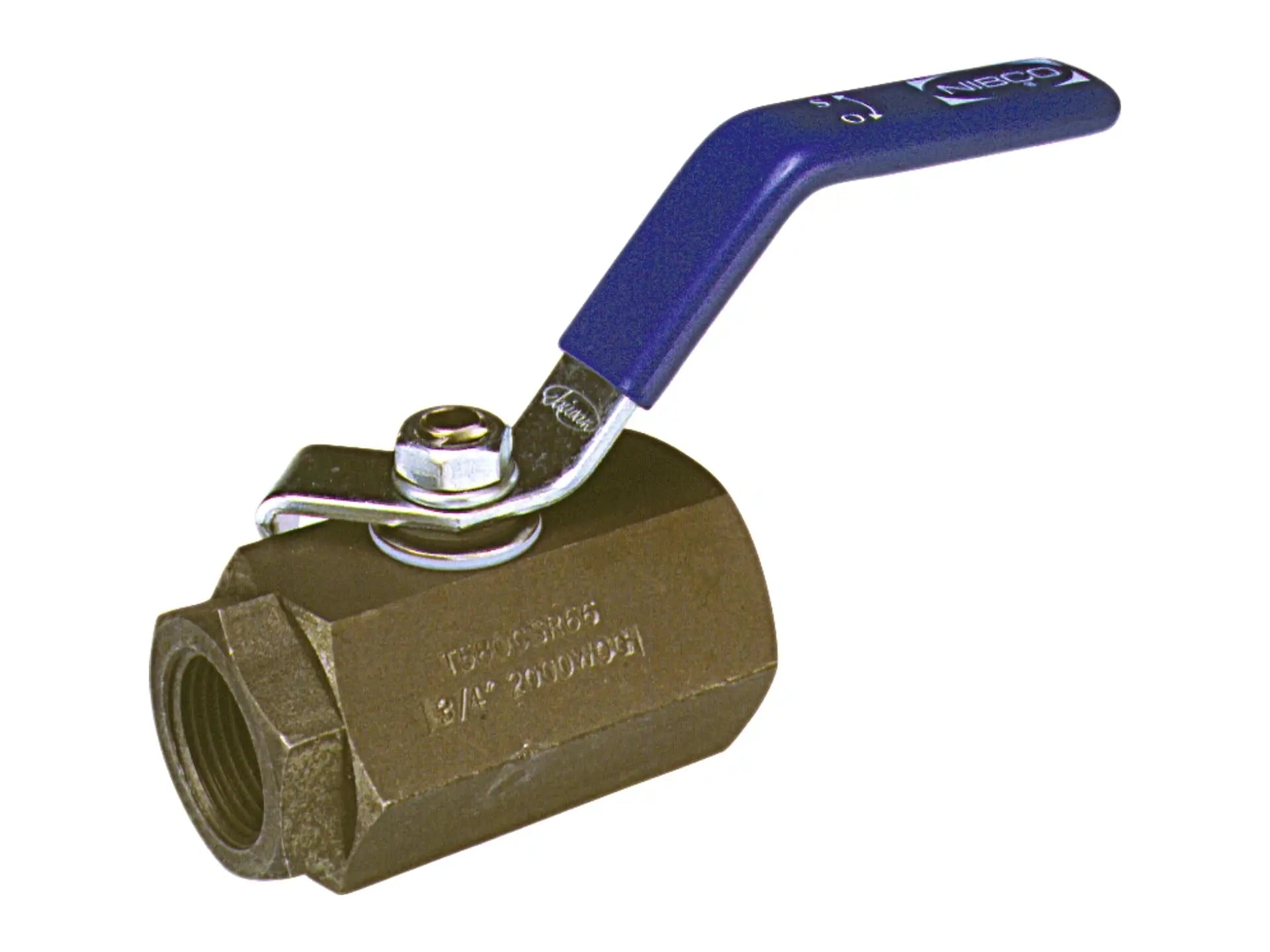

Nibco NL94GI5 Ball Valve 3/8 inches

Product Description

The NIBCO NL94GI5 is a bar stock carbon steel ball valve that provides a bubble-tight shutoff at 2000 psi (size 1/4" to 1") and 1500 psi (size 1-1/4" to 2"). Features a reinforced PTFE seat ring and stainless steel ball/stem exhibiting high chemical resistance properties, recommended for process piping. The two-piece valve may be used on hot/cold water and HVAC.

• Valve pressure rating 2000 psi 138 bar non-shock cold working pressure (1/4" to 1')
• Maximum temperature rating 4000F
• Threaded end connections

Product Highlights

This NIBCO ball valve features threaded ends for easy installation and quarter-turn (90°) open to close.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL94GI5
• Country of Origin: TW

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NL94GI5
• Model: T-580-CSR-66
• Series: T-580-CS-R-66
• Type of Valve: Ball
• Nominal Pipe Size: 3/8"
• End Connection Type: T -- Female NPT Thread (FIPT)
• Material: Carbon Steel
• Ball Body Type: Two-Piece
• Ball Operator: CS Standard Lever Handle
• Ball Port Style: Conventional Port
• Ball Stem Material: SS - Stainless Steel
• Trim Package: Stainless Steel Trim
• Seat Seal Material: RPTFE (Reinforced)
• Turns Operations: Quarter-Turn
• Pressure Rating (CWP): 2000 psi/138 Bar CWP
• Length: 5.28"
• Width: 2.73"
• Height: 1.18"
