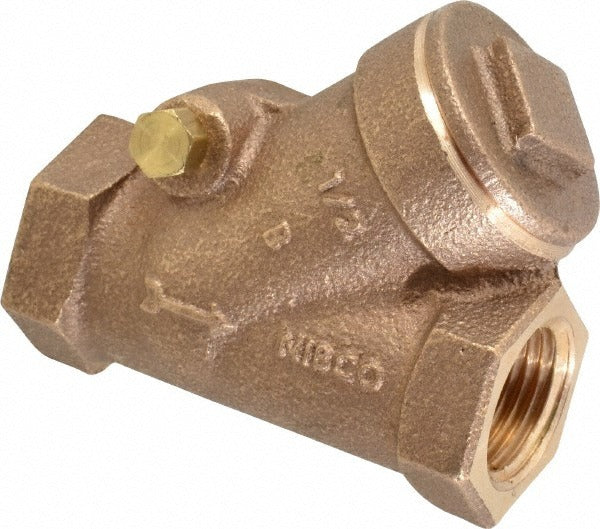

Nibco NL92006 Bronze Y-pattern Check Valve 1/2 Inch

Product Description

The NIBCO NL92006 is a bronze Y-pattern check valve designed for in-line installation in piping systems where backflow prevention is required. It features female NPT connections on both ends and is rated for 600 WOG (water, oil, gas) service up to 600 psi. The Y-pattern body design reduces pressure drop across the valve compared to swing-type designs, making it well suited for systems where flow efficiency matters. A PTFE (polytetrafluoroethylene) seal provides reliable seating across a wide temperature range. Licensed plumbers and pipefitters are the primary installers of this valve in commercial and industrial piping systems.

The NL92006 is used in residential and light commercial plumbing, hydronic heating, compressed air, and general fluid service applications where a 1/2 inch FNPT threaded connection is required. Its bronze body construction makes it appropriate for water, oil, and gas service lines operating at or below the rated pressure and temperature limits. The Y-pattern configuration allows for periodic access to the internal check mechanism, which can be useful in maintenance-intensive installations.

Key Features

• Bronze body construction for durability in water, oil, and gas service
• Y-pattern design reduces pressure drop and allows internal access for service
• PTFE seal material provides a tight, corrosion-resistant seat
• Rated to 600 psi WOG working pressure
• FNPT x FNPT end connections for standard threaded pipe installation
• Maximum service temperature of 421 degrees F (216 degrees C)
• Manufactured under ISO 9001:2008 quality standards

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1/2 inch FNPT threaded pipe systems in plumbing, hydronic, compressed air, and general fluid service applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the line completely before installing or replacing the valve. Apply thread sealant or PTFE tape to male NPT threads per standard practice and applicable plumbing codes such as the IPC. Observe the flow-direction arrow cast on the valve body to ensure proper orientation in the line.
