Nibco NL83008 Check Valve 3/4 Bronz T453B 200# Thrd Horizontal Swing

Product Description

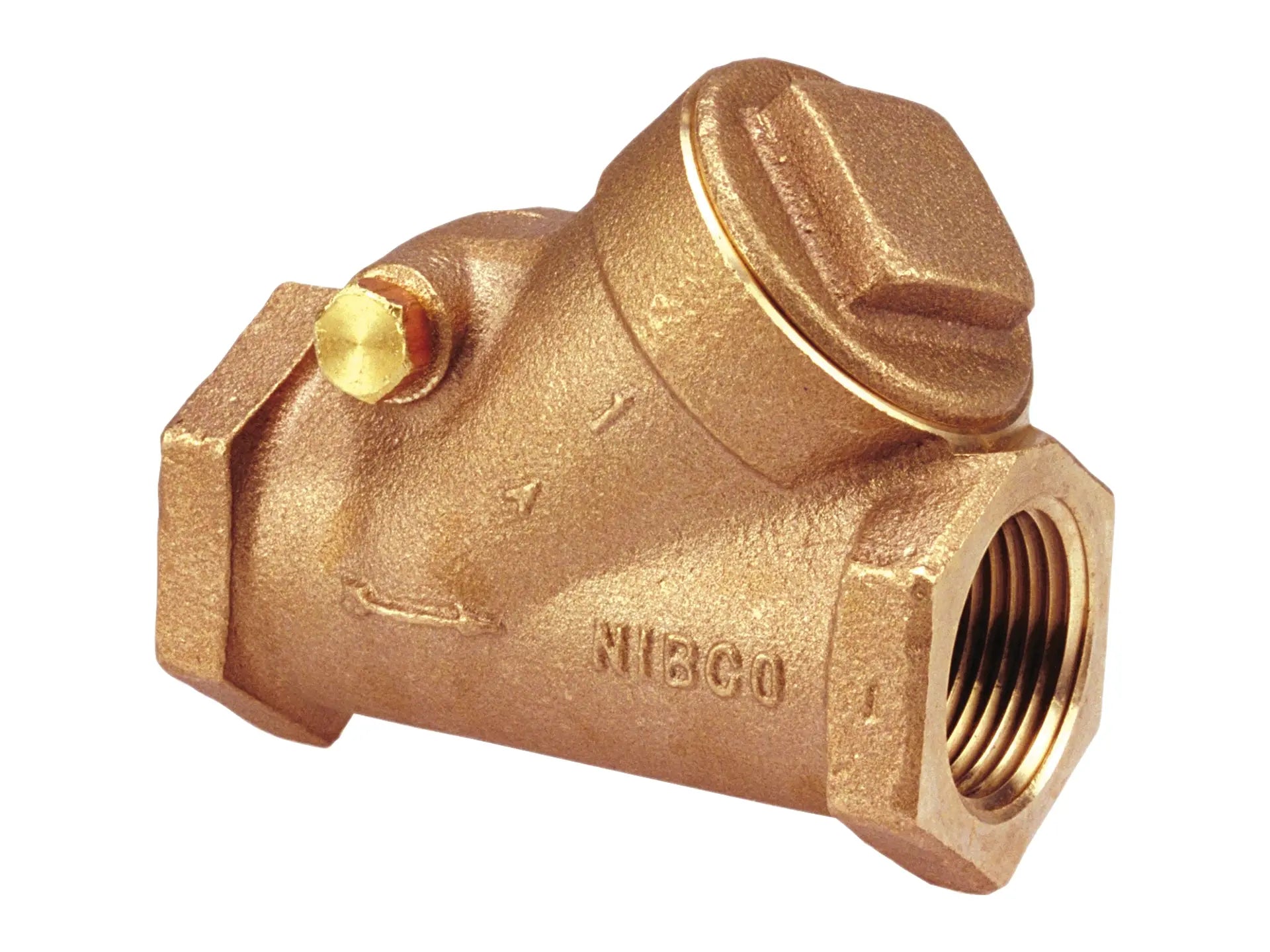

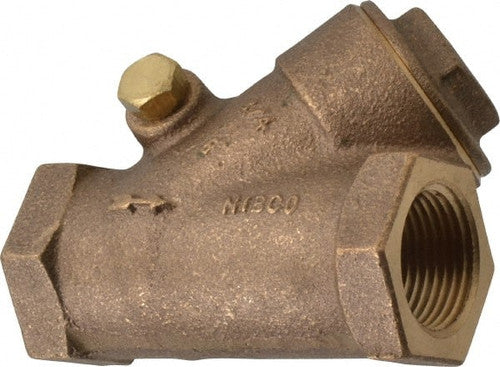

The NIBCO NL83008 bronze horizontal swing check valve features threaded end connections for ease of installation. The Y-pattern design includes a renewable seat and disc. This check valve prevents backflow by automatically closing when fluid reverses direction. Recommended for commercial and industrial steam, water, oil and gas services.

• Threaded end connections for ease of installation
• Y-pattern design with renewable seat and disc
• Prevents backflow
• Recommended for commercial and industrial steam, water, oil and gas services

Product Highlights

The NIBCO bronze check valve is a versatile and economical valve option for commercial, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL83008
• Country of Origin: US

Technical Specifications

• Series/Model: Model T-453-B
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 400 PSI (CWP) Non-Shock, 200 PSI (SWP) At 391 DEG F
• Pressure Class: Class 200
• Body Material: Bronze
• Trim Material: Bronze Disc
• Seat Material: Bronze
• Material Standard: Body, Bonnet And Disc: ASTM B61
• Material Specification: Disc: UNS C92200
• Industry Standards: MSS-SP-80 Compliant
• Width: 3.13 IN
• Lead Free: No
• Other Physical Dimension: 2.06 IN Inlet Center To Top Of Valve
• UPC Code: 039923637109
• Type: Check Valve
• Valve Size: 3/4
• Material: Bronze
• Description: T453B 3/4 THD 200# CHECK BRZ SEAT
• eClass Classification: Swing Bronze Check Valves
• Turns/Operation: Non-Manual
• Valve Type: Y-Pattern
• End Connection: FNPT x FNPT
• Seal Material: Bronze
• Maximum Working Pressure: 400psi
• Standards: ISO 9001 2008
• Maximum Temperature (F) ( - 0 Decimals): 391.00
• Maximum Temperature (C): 201.00
• Pipe Size: 3/4
• Part Number: NL83008
• Model: T-453-B
• Valve Pattern: Y
• Connection: 3/4" Female NPT Thread (FIPT)
• Cold Working Pressure: 400 psi
• Maximum Temperature: 391°F
• Disc Style: Renewable
• Disc Material: Bronze
• Seat Style: Regrindable
• Type of Check Valve: Swing
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Length: 2.94"
• Height: 1.73"
