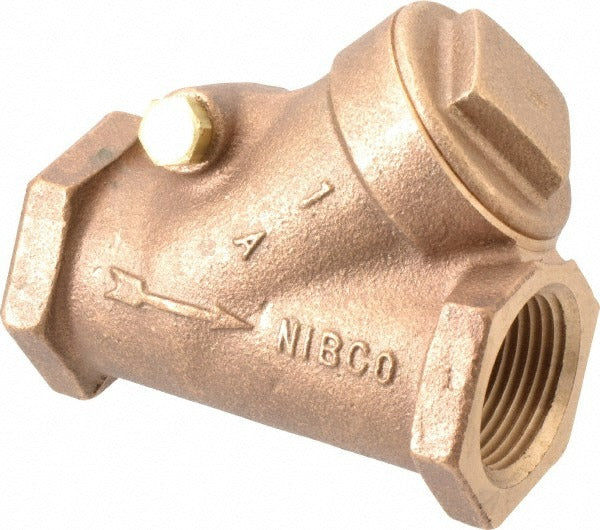

Nibco NL740VA 1 Inch Bronze Y-pattern Check Valve

Product Description

The NIBCO NL740VA is a Y-pattern check valve designed for inline installation in piping systems where backflow prevention is required. Built with a bronze body and Viton seal, this valve handles working pressures up to 200 psi and temperatures up to 353 degrees F, making it well-suited for demanding fluid control applications. The female NPT (FNPT) connections on both ends allow direct threaded installation into standard pipe runs without adapters. Licensed plumbers and pipefitters are the primary installers for this type of valve in commercial and industrial service lines.

The NL740VA fits 1-inch pipe and is used in residential and light commercial plumbing, hydronic heating, and process piping wherever a reliable check valve is needed to prevent reverse flow. The Y-pattern body design provides a more direct flow path compared to swing-check configurations, resulting in lower pressure drop across the valve. Its Viton seals make it compatible with a range of media including water, oils, and certain chemicals where Viton resistance is appropriate.

Key Features

• Y-pattern body design for low pressure drop and smooth flow characteristics
• Bronze body construction for corrosion resistance in wet service environments
• Viton seal material rated for compatibility with water, oils, and select chemical media
• Rated to 200 psi working pressure (WOG) for reliable performance in pressurized systems
• Maximum temperature rating of 353 degrees F suits hot-water and steam-adjacent applications
• FNPT x FNPT end connections for straightforward threaded installation

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1-inch threaded piping systems using standard NPT fittings in plumbing, hydronic, and light industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME B31 piping standards. Shut off and depressurize the system fully before removing any existing valve or making new connections. Apply thread sealant or PTFE tape to the male NPT threads before threading the valve into the line, and verify flow direction markings on the valve body before final installation. Do not exceed the rated working pressure or temperature limits for this valve.
