Nibco NL3W00A T-275-B Globe Valve 1 Inch Class 300

Product Description

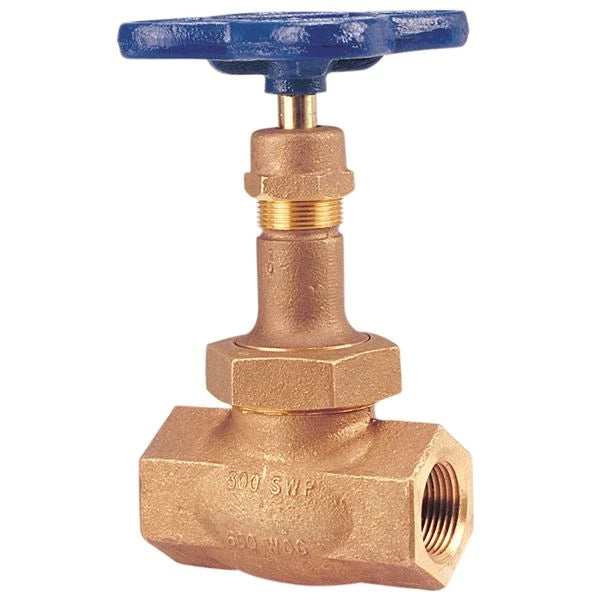

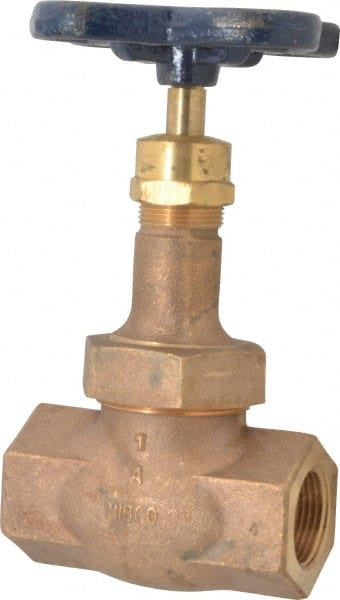

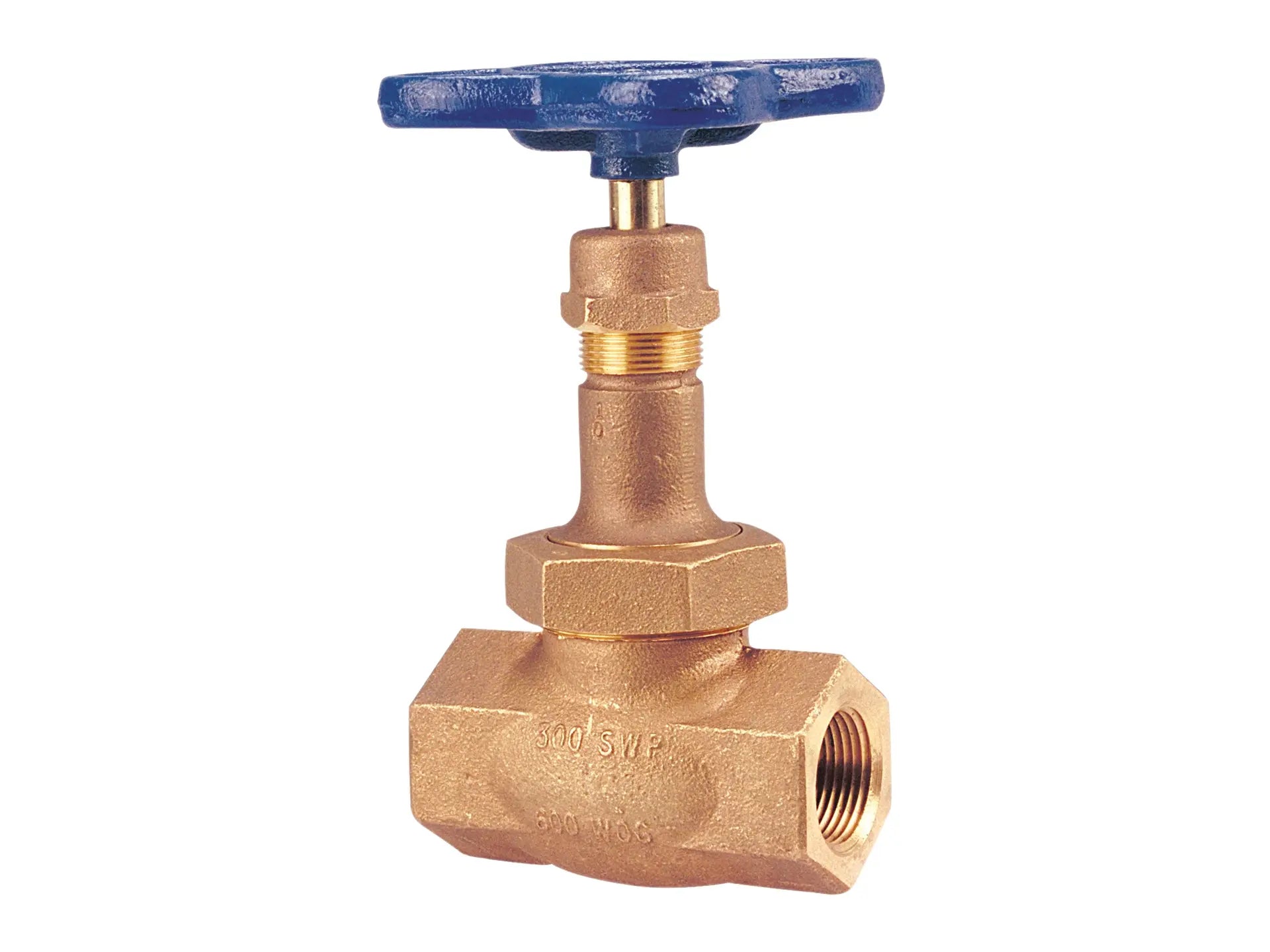

The NIBCO NL3W00A bronze globe valve features a union bonnet with integral seat and renewable semi-plug or standard disc. Equipped with female threads ends for ease of installation, this 1-inch valve is ideal for higher pressure steam. The semi-plug disc allows for closer throttling of flow. It is rated to 300 psi saturated steam to 421°F.

• Features a union bonnet with integral seat
• Equipped with female threads ends for ease of installation
• Semi-plug disc allows for closer throttling of flow

Product Highlights

The NIBCO globe valve is a versatile and economical valve option for commercial, mechanical, and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NL3W00A
• Country of Origin: US

Technical Specifications

• UPC Code: 039923629029
• Type: Globe Valve
• Valve Size: 1"
• Connection Type: Female NPT Thread (FIPT)
• Material: Bronze
• Valve Operator: Standard Handwheel
• Description: T275B 1 THD 300# GLOBE BRZ SEAT
• eClass Classification: Bronze Globe Valves
• Turns/Operation: Multi-Turn
• Weight: 4.756 lb
• Bonnet Style: Union
• Item: Globe Valve
• Body Material: Bronze
• Cold Working Pressure: 600 psi
• Connection Size: 1"
• Disc Style: Renewable Semi Plug
• Handle Style: Standard Handwheel
• Height: 4"
• Length: 8.1"
• Material Specification: ASTM A-53
• Maximum Temperature: 421°F
• Potable Water Code: Not LL Compliant - Not Intended for Potable Water
• Seat Material: Bronze
• Seat Style: Integral
• Valve Type: Globe Valve
• Manufacturer: NIBCO
• Part Number: NL3W00A
• Model: T-275-B
• Width: 4"
