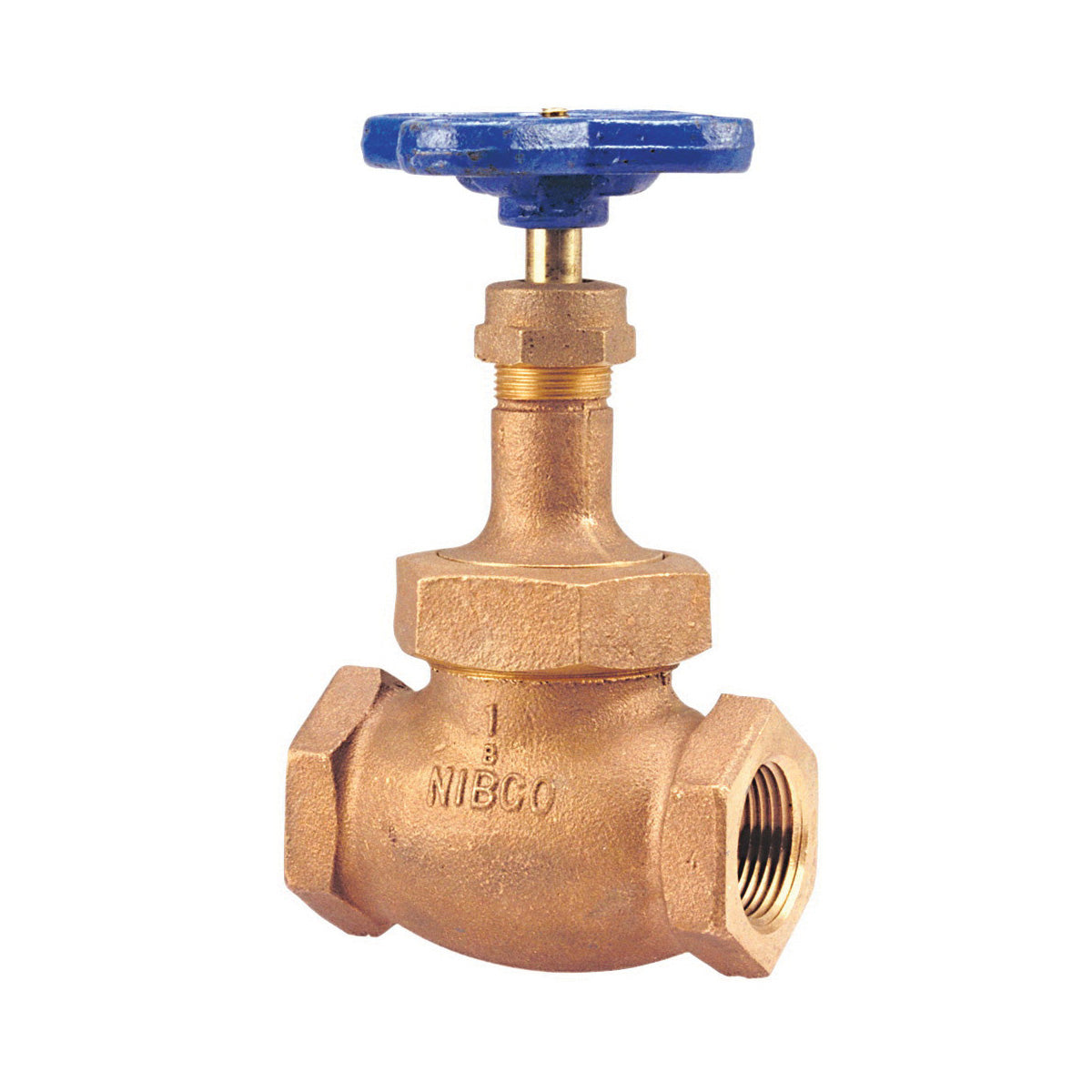

NIBCO NL34005 Globe Valve 3/8 in Nominal NPT End Style 150 lb

Product Description

The NIBCO NL34005 globe valve features a bronze body with a handwheel actuator. It is designed for controlling flow in various applications. This globe valve is made for hot and cold water, HVAC, steam, and gas services. The female threaded ends allow for easy installation. The valve is bi-directional and suitable for both commercial and industrial uses.

• Renewable PTFE seat disc
• Integral seat design
• Dezincification resistant for durability

Product Highlights

The NIBCO globe valve provides reliable flow regulation. It meets industry standards and is supported by a manufacturer warranty.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Body Material: Bronze

Technical Specifications

• Actuator Type: Handwheel
• Nominal Size: 3/8 in
• End Style: NPT
• Pressure Rating: 300 psi
• Pressure Class: 150 lb
• Media: Water
• Inlet to Outlet Length: 2.38 in
• Top to Inlet Center: 3.88 in
• Softgoods Material: Aramid Fiber
• Domestic/Import: Domestic
• Series: T-235-Y
• Trim Material: Silicon Bronze
