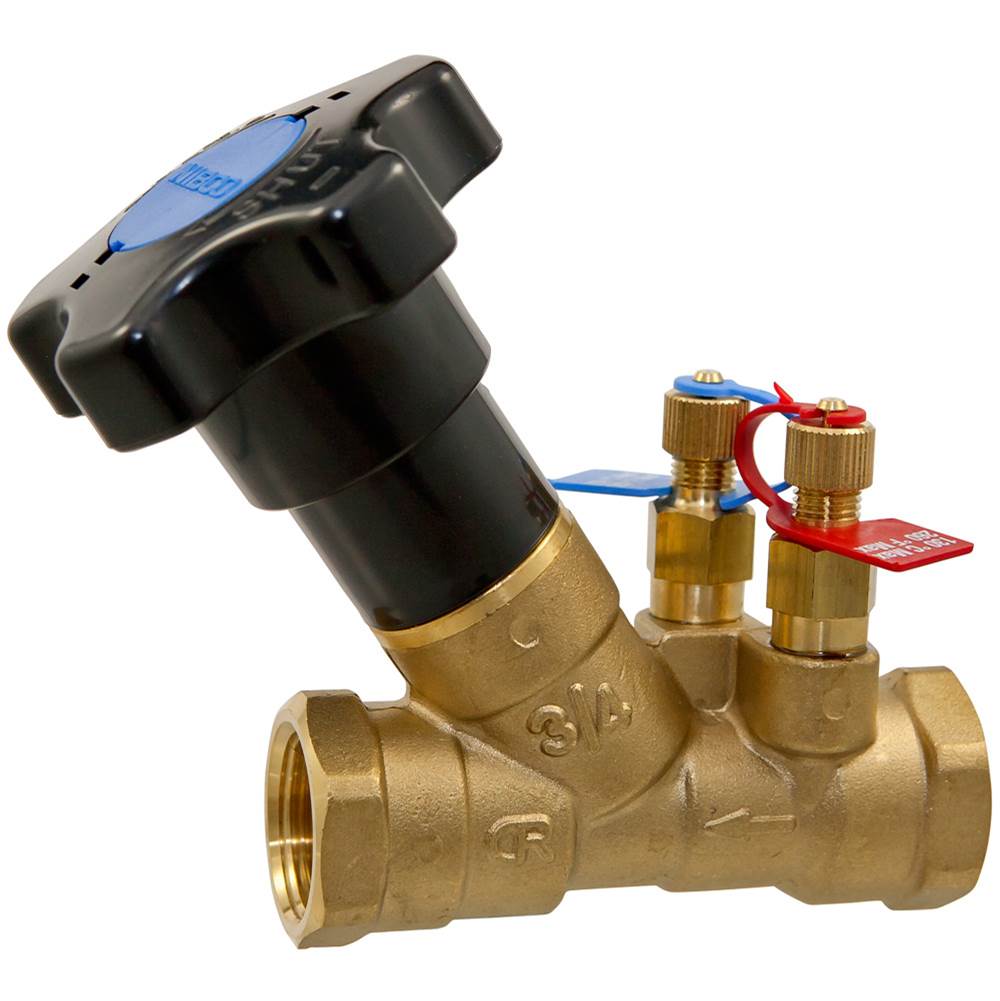

Nibco NL2X00C T1810 1-1/2 Balancing Valve Thread End

Product Description

NIBCO NL2X00C is a manual balancing valve in the T-1810 series. This valve measures one and a half inches nominal size and has a FNPT thread end. It can handle pressures up to 300 psi and temperatures of 260 degrees Fahrenheit. The length from inlet to outlet is five inches, making it suitable for various HVAC and plumbing applications.

• Manual balancing valve for hot and chilled water systems
• Integral pressure temperature ports for easy measurement
• DZR brass body and internal components for durability

Product Highlights

This valve allows quick balancing of HVAC systems without the need for special tools or meters. The integral memory stop feature helps maintain system settings even after maintenance.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-1810

Technical Specifications

• Body Material: Brass
• Nominal Size: 1-1/2 inches
• Pressure Rating: 300 psi
• Temperature Rating: 260 degrees Fahrenheit
• Inlet to Outlet Length: 5 inches
• End Style: FNPT
• Softgoods Material: EPDM
• Trim Material: Brass
