Nibco NL2X00A T1810 1 Balancing Valve Thread End

Product Description

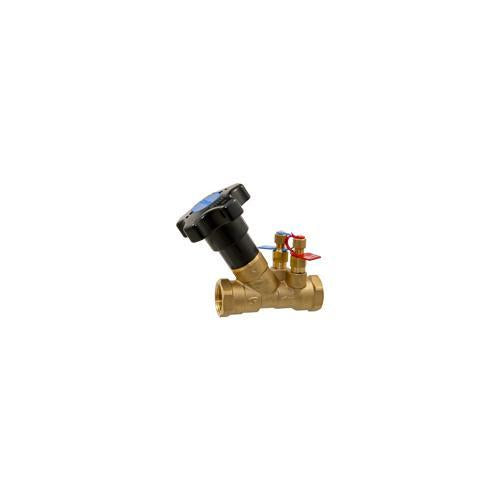

The NIBCO NL2X00A is a T1810 series manual balancing valve designed for HVAC and mechanical hot and chilled water systems. This fixed orifice valve fits a one inch NPT connection and has a pressure rating of 300 psi. Its length from inlet to outlet is three point nine four inches and from top to inlet center is four point zero six inches.

• DZR brass body and internal components
• Integral pressure temperature ports
• Memory stop feature for system settings

Product Highlights

The NIBCO NL2X00A offers quick and accurate balancing of water systems. It is easy to set without needing special tools, making it ideal for various applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-1810

Technical Specifications

• Body Material: Brass
• Nominal Size: 1 in
• End Style: FNPT
• Pressure Rating: 300 psi
• Temperature Rating: 260 deg F
• Inlet to Outlet Length: 3.94 in
• Top to Inlet Center: 4.06 in
• Softgoods Material: EPDM
