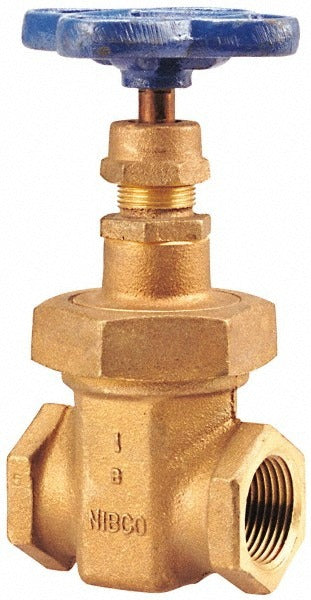

Nibco NL1T004 Gate Valve 1/4 Inch Threaded Bronze

Product Description

The NIBCO NL1T004 is a non-rising stem gate valve designed for fluid isolation in plumbing and piping systems. It features a bronze body with a union bonnet and solid wedge disc, sized for 1/4 inch threaded pipe connections. Rated at 150 pressure class, this valve is suited for fully open or fully closed service where flow restriction must be minimized. The non-rising stem design keeps the valve compact during operation, making it a practical choice where vertical clearance is limited. Licensed plumbers and pipefitters install this valve in commercial and residential piping systems.

This valve fits 1/4 inch threaded pipe and is appropriate for use in water distribution, hydronic heating, and general plumbing applications. The threaded end connection allows direct installation into standard NPT-threaded pipe runs without additional fittings. The union bonnet design simplifies field service by allowing the internal components to be removed without unthreading the valve body from the line. This makes it a practical choice for systems where periodic inspection or service is expected.

Key Features

• Non-rising stem keeps overall installed height constant during valve operation
• Union bonnet allows internal access without removing the valve body from the line
• Solid wedge disc provides reliable shutoff in fully open or fully closed service
• Bronze body offers corrosion resistance suitable for water and compatible fluid service
• Threaded end connections for direct NPT pipe installation
• 150 pressure class rating for standard plumbing system pressures

Compatibility

Designed as an OEM-style replacement or new-install gate valve for 1/4 inch NPT threaded pipe in residential and light commercial plumbing and hydronic piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off system pressure and drain the line before installing or servicing this valve. Apply appropriate thread sealant or PTFE tape to NPT threads before assembly. Gate valves are intended for fully open or fully closed operation and should not be used to throttle flow.
