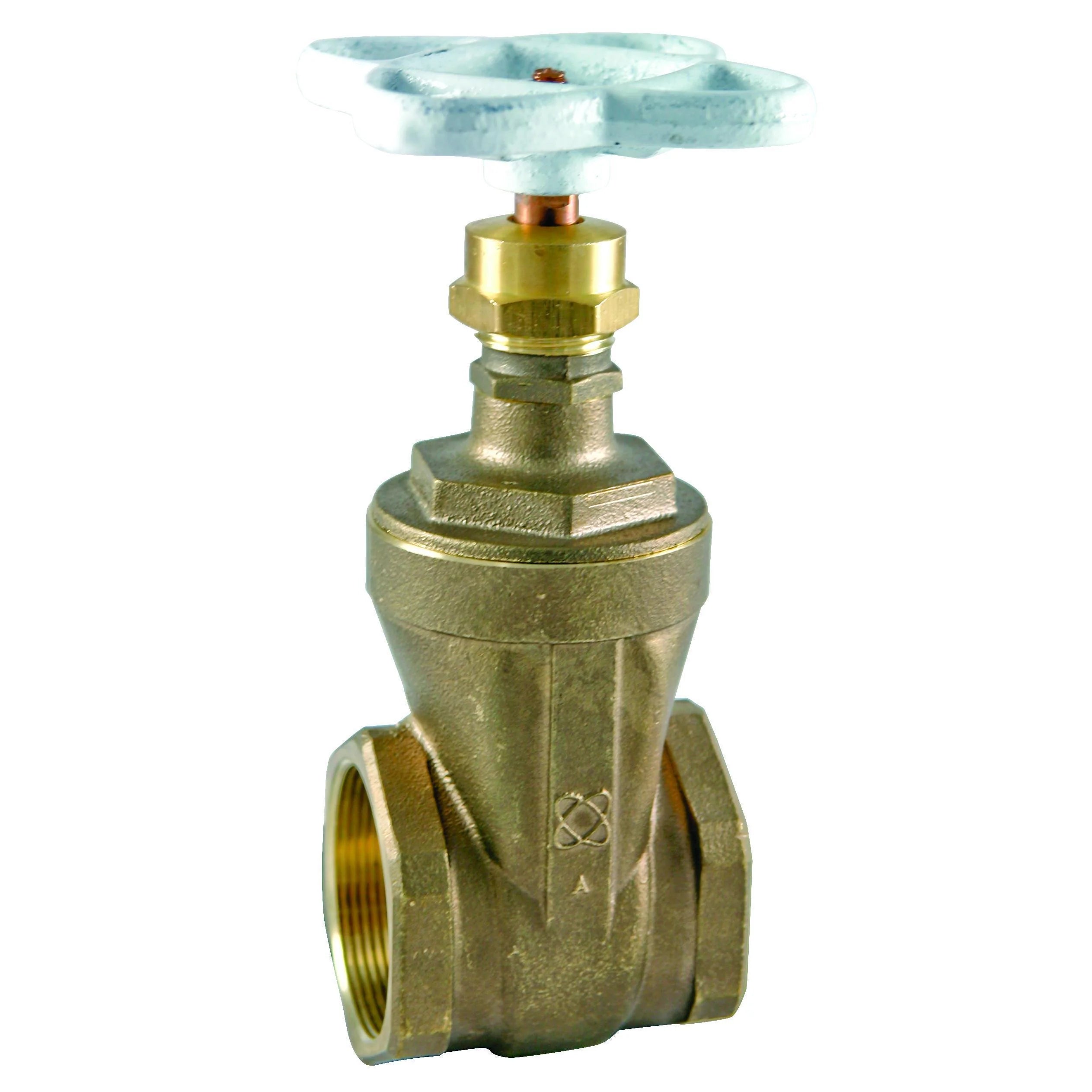

NIBCO NL0J0XC T-113-LF Gate Valve 1-1/2 in Nominal Threaded End Style 125 lb

Product Description

NIBCO NL0J0XC is a gate valve designed for both commercial and residential applications. This valve has a nominal size of one and one-half inches and features a threaded end style. It operates effectively at a maximum pressure of three hundred psi. The solid wedge and integral seats ensure reliable bi-directional service.

• Solid wedge design for dependable sealing.
• Integral seats minimize leakage.
• Threaded ends for easy installation.

Product Highlights

This valve is well-suited for use in systems that require a reliable shut-off option. The low lead construction makes it appropriate for applications where water is intended for human consumption.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• MPN: NL0J0XC

Technical Specifications

• Body Material: Silicon Bronze
• Inlet to Outlet Length: 2.88 in
• Dimensions: 7-1/2 in H
• Nominal Size: 1-1/2 in
• Pressure Class: 125 lb
• Pressure Rating: 300 psi
• Temperature Rating: 300 deg F
• Valve Type: Non-Rising Stem
