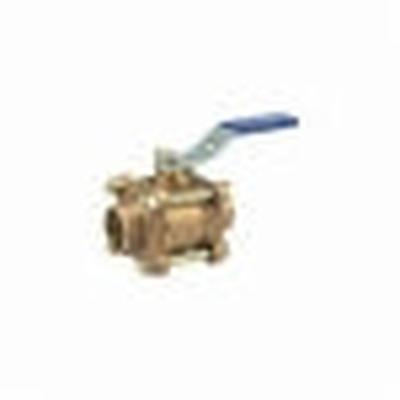

NIBCO NJ93008 3-Piece Ball Valve 600 psi 3/4 in Nominal Solder

Product Description

The NIBCO NJ93008 is a bronze ball valve designed with solder end connections. This 3-piece valve is suitable for hot and cold water, gas applications, compressed air, and vacuum service. It operates with a quarter-turn, providing reliable shut-off at up to 600 psi. The valve's inline repair feature enhances usability, making it a practical choice for various applications including condenser and chilled water systems.

• 600 psi pressure rating
• Repairable inline design
• Full port for maximum flow

Product Highlights

This valve is engineered for ease of use, featuring a lever handle actuator and high chemical resistance from its PTFE seat ring and brass hard chrome plated ball.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Type: 3-Piece

Technical Specifications

• Pressure Rating: 600 psi
• Temperature Rating: 400 deg F
• Nominal Size: 3/4 in
• Ball Material: Brass
• Body Material: Bronze
• Inlet to Outlet Length: 2.94 in
• Top to Inlet Center: 2 in
• Media: Air/Gas/Water
