Product Description
The Nibco Check Valve with MPN NJ7Q2X6 is suitable for both commercial and residential use. This valve type features a horizontal/vertical configuration and spring-actuated in-line lift design. Its key applications include plumbing systems, where its reliable function prevents backflow and maintains fluid direction.
- Lead-free construction for safety.
- Female soldered connections for easy installation.
- Resilient PTFE disc provides reliable sealing.
Product Highlights
This valve is designed to handle maximum pressure ratings up to 250 PSI and operates effectively at temperatures reaching 300 degrees Fahrenheit. It is compliant with NSF/ANSI standards ensuring safe usage.
Product Information
Standard Information
-
Brand: Nibco
-
MPN: NJ7Q2X6

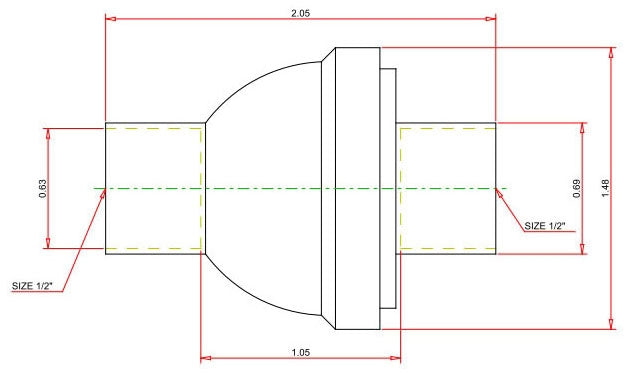

Technical Specifications
-
Nominal Size: 1/2 Inch
-
End Connection: Female Soldered x Female Soldered
-
Body Material: ASTM B584 C87850 Silicon Bronze Alloy
-
Disc Material: PTFE
-
Spring Material: 316 Stainless Steel
-
Seat Material: PTFE
-
Seal Material: PTFE
-
Pressure Rating: Class 125, 100 PSI at 300 Degrees F, 250 PSI CWP (Non-Shock)
