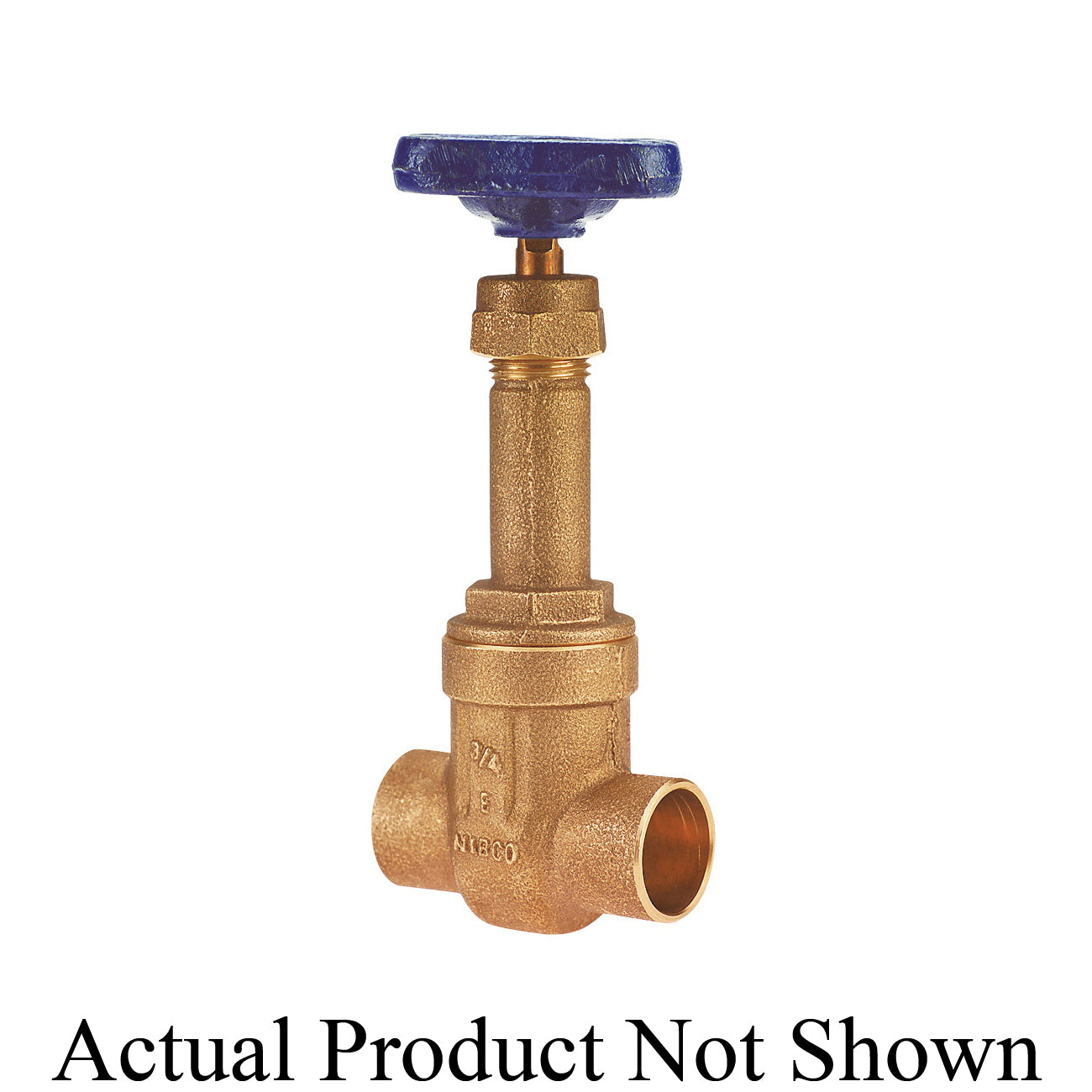

NIBCO NJ05005 Gate Valve, 3/8 in Nominal, Solder End Style, 125 lb, Bronze Body

Product Description

The NIBCO NJ05005 is a bronze gate valve suitable for various commercial and industrial applications. It effectively manages hot and cold water, steam, compressed air, and gas services.

• Nominal size of three-eighths inches
• Handwheel actuator allows for easy operation
• 125 lb pressure class and 200 psi pressure rating

Product Highlights

This gate valve is commonly used in sectors needing reliable flow control. It features a solder end style for secure connections and is manufactured for durability with bronze materials.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Media: Air/Gas/Water

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 1.69 inches
• Nominal Size: 3/8 inches
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: S-111
• Softgoods Material: Aramid Fiber
• Top to Inlet Center: 4.63 inches
• Trim Material: Silicon Bronze
