Nibco Nibco Mode Bronze Gate Valve 3/4 in Threaded 150 Psi

Product Description

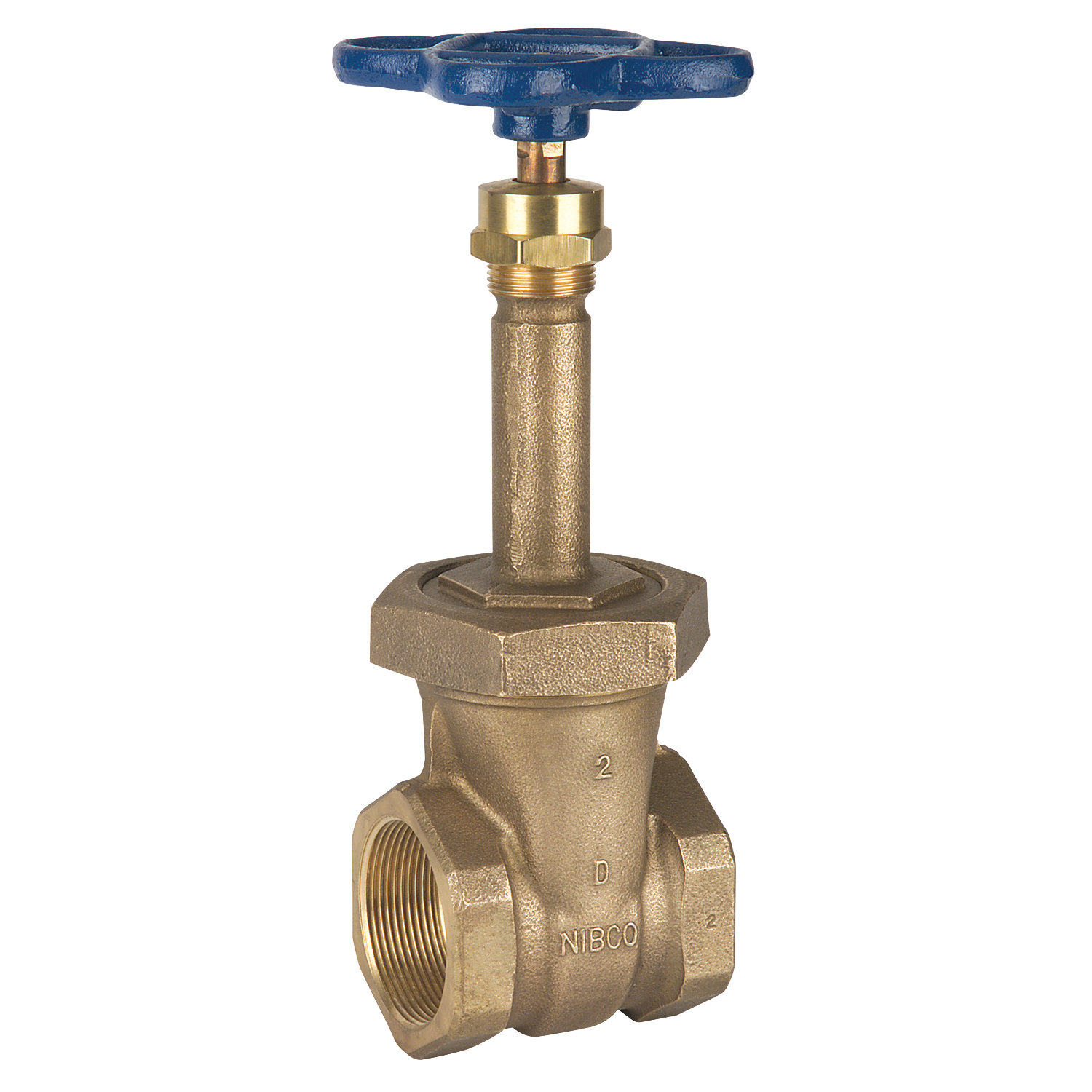

The NIBCO NIBCO MODE is a bronze gate valve designed for shutoff service in commercial and industrial piping systems. It features a threaded end connection and a rising stem configuration, allowing visual confirmation of the open or closed position during operation. Rated at 150 PSI, this valve is built for demanding utility applications across a wide range of media. Licensed plumbers, pipefitters, and HVAC technicians specify gate valves like this one where full-bore flow and minimal pressure drop are required in the open position.

This valve is suited for residential, commercial, and industrial installations handling hot and cold water, HVAC hydronic systems, steam, compressed air, gas, and general utility services. The bronze body construction provides corrosion resistance appropriate for wet and steam environments. It is a practical choice for mechanical rooms, boiler systems, and utility distribution lines where a reliable, economical isolation valve is needed.

Key Features

• Bronze body construction for corrosion resistance in wet and steam service
• Threaded end connections for standard pipe installation
• Rising stem design provides visual open/closed indication
• 150 PSI pressure rating suitable for commercial and industrial utility systems
• Suitable for hot and cold water, HVAC, steam, compressed air, and gas service

Compatibility

Designed as an OEM-style replacement or new-installation gate valve for threaded piping systems in commercial, mechanical, and industrial applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or local mechanical codes. Isolate and depressurize the line and allow steam or hot-water systems to cool before beginning work. Use appropriate thread sealant or PTFE tape on all threaded joints and verify rated pressure does not exceed the valve rating after returning the system to service.

Technical Specifications

• Body Material: Bronze
• End Connection: Threaded
• Stem Type: Rising Stem
• Pressure Rating: 150 psi
• Nominal Size: 3/4 inches
• UPC: 039923618320

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NIBCO MODE
