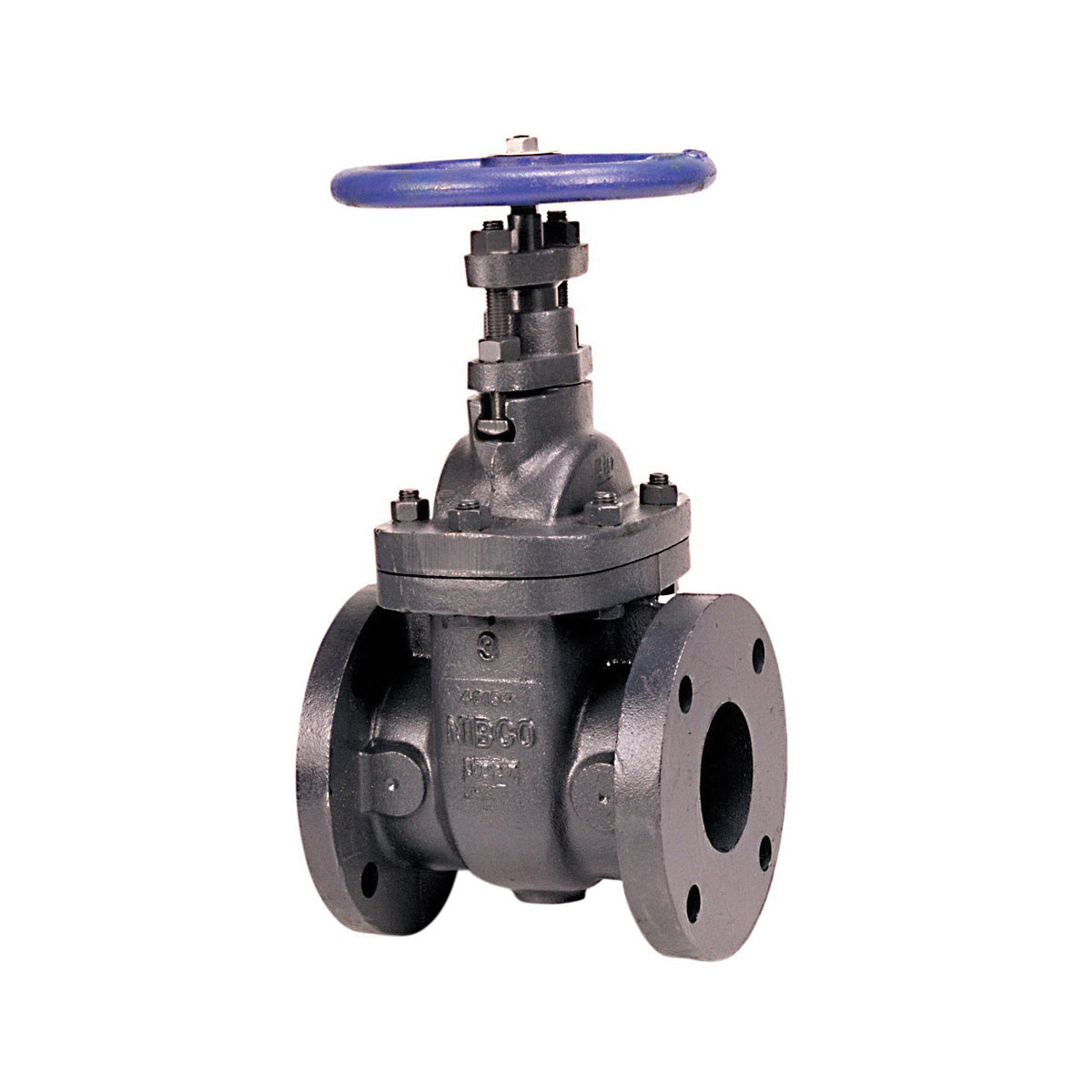

NIBCO NHAC00K F-619 Gate Valve, 6 in Nominal, Flanged End Style, 125 lb

Product Description

The NIBCO cast iron gate valve, MPN NHAC00K, is designed for full flow with minimal pressure drop. It features a Class 125 flanged, flat face end connection for easy installation. This iron body valve has a bronze mounted and bolted bonnet with a non-rising stem, recommended for conditions requiring a positive shutoff. It is suitable for commercial and industrial applications involving hot and cold water, HVAC, steam, gas, and other services.

• Class 125 flanged end for easy installation
• Non-rising stem design for space efficiency
• Versatile for various media including air, gas, and water

Product Highlights

The NIBCO gate valve offers a reliable solution for applications requiring a strong shutoff capability. It supports temperatures up to four hundred fifty degrees Fahrenheit and pressures up to two hundred psi.

Product Information

Standard Information

• Manufacturer: NIBCO Inc.
• Part Number: NHAC00K

Technical Specifications

• Nominal Size: 6 in
• Body Material: Cast Iron
• Trim Material: Brass
• Media: Air/Gas/Water
• Pressure Rating: 200 psi
• Pressure Class: 125 lb
• Temperature Rating: 450 deg F
• Actuator Type: Handwheel
• Inlet to Outlet Length: 10-1/2 in
• Top to Inlet Center: 21 in
• Hand Wheel Diameter: 12 in
