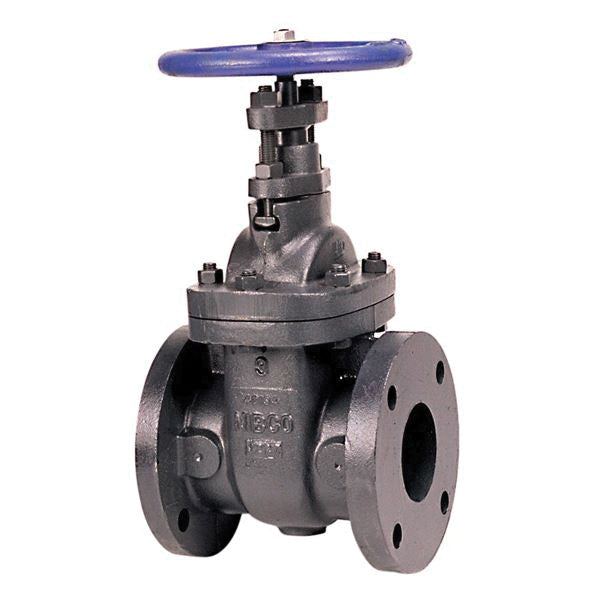

Nibco NHAC00D F-619 2 NRS FLG GATE CI

Product Description

NIBCO Gate Valve, MPN: NHAC00D, has a nominal size of 2 inches with a flanged end style. It is built to handle pressures of 200 psi and operates well at a temperature up to four hundred fifty degrees Fahrenheit.

• Constructed from cast iron with brass trim
• Features a handwheel actuator for easy operation
• Suitable for use with air, gas, and water

Product Highlights

This valve is designed for commercial and industrial applications, including HVAC systems. It ensures minimal pressure drop and provides reliable shut-off capabilities where space is limited.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Non-Rising Stem

Technical Specifications

• Nominal Size: 2 inches
• Pressure Rating: 200 psi
• Pressure Class: 125 lb
• Temperature Rating: 450 degrees Fahrenheit
• Media: Air/Gas/Water
• Actuator Type: Handwheel
• Body Material: Cast Iron
• Trim Material: Brass
• Inlet to Outlet Length: 7 inches
• Top to Inlet Center: 11 inches
• Hand Wheel Diameter: 7 inches
