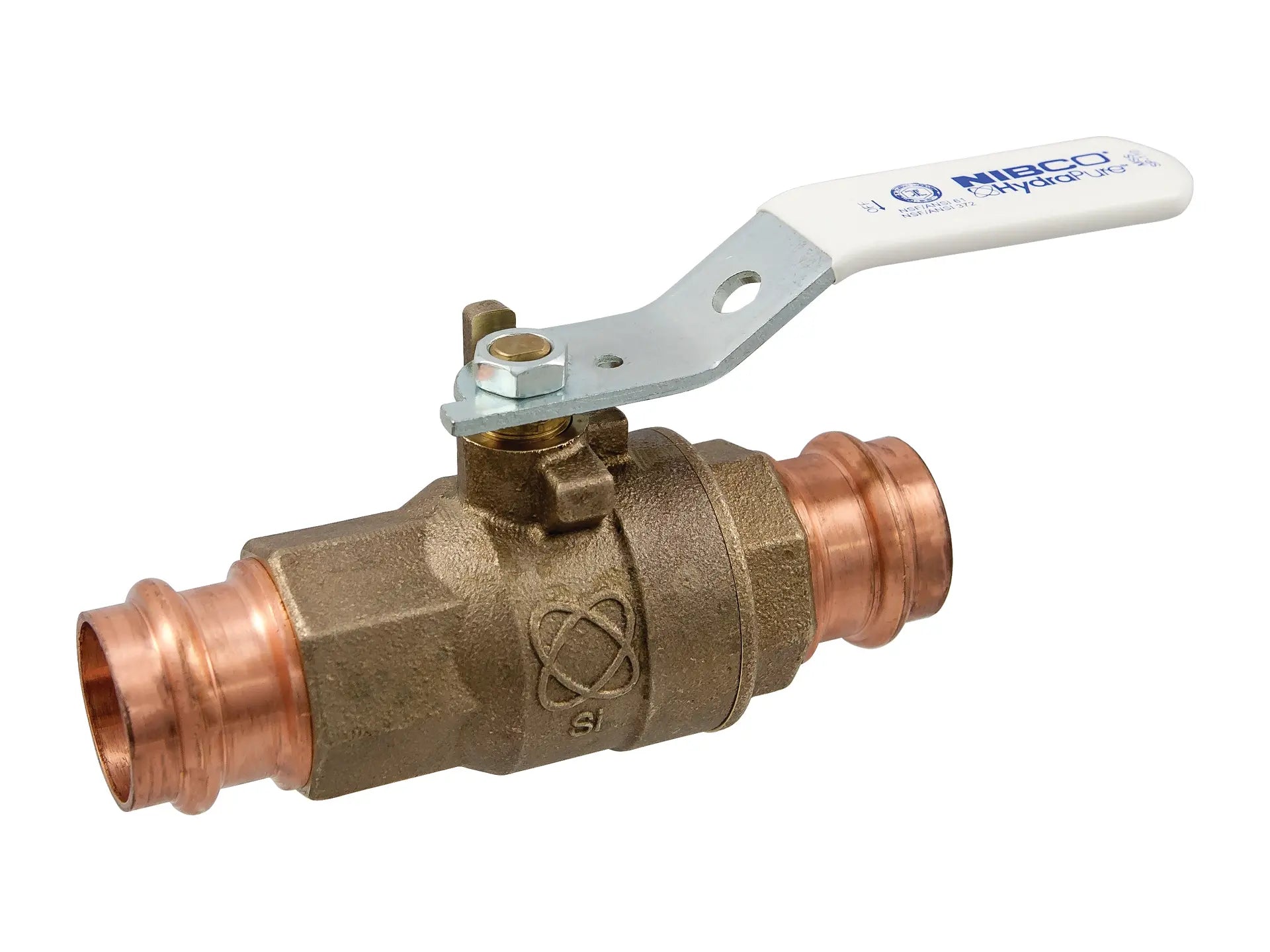

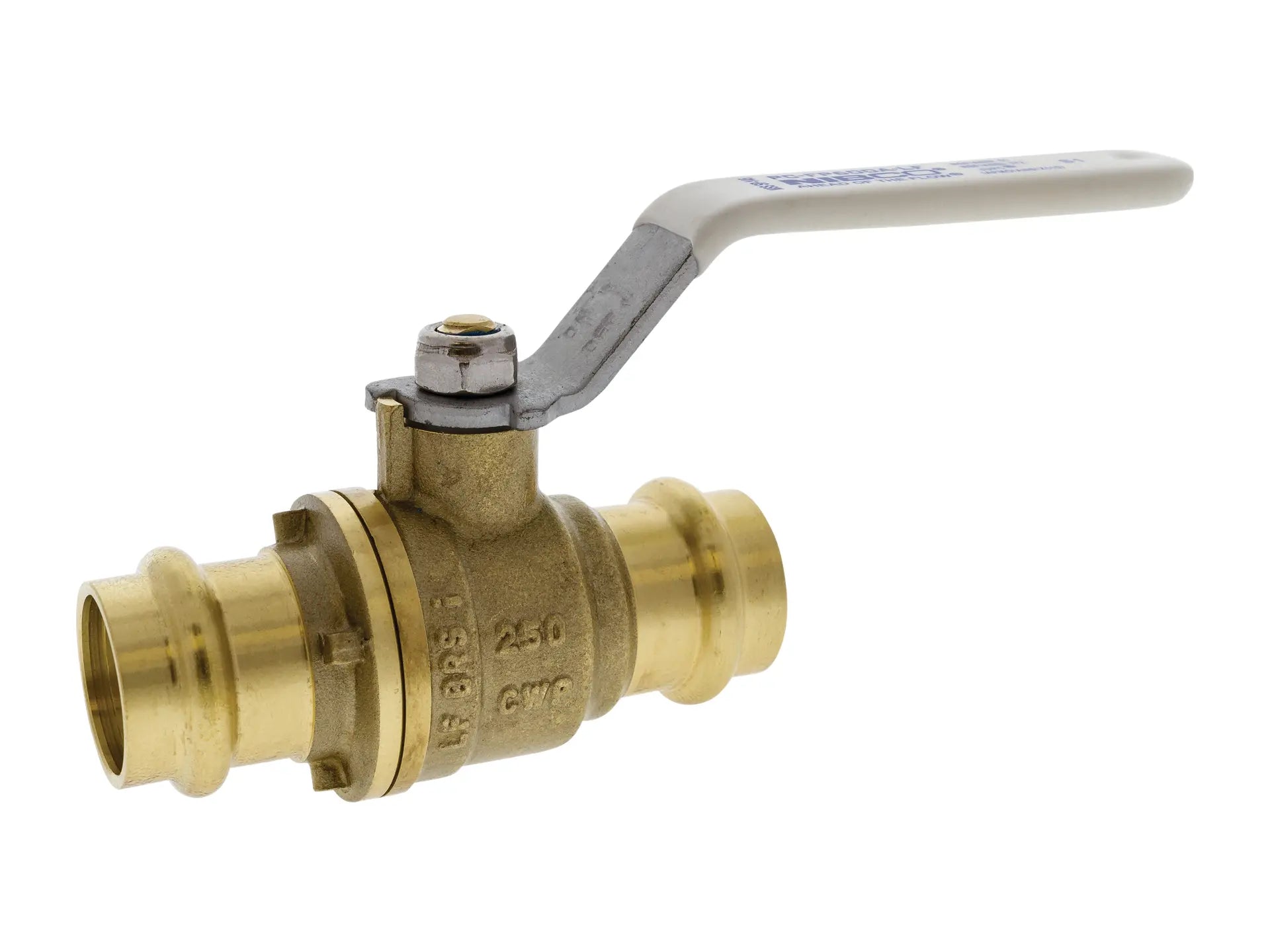

Nibco NFB84HLXA Ball Valve 1 in. x 1 in.

Product Description

The NIBCO NFB84HLXA is a ball valve with a lead-free HydraPure Performance Bronze alloy body that resists dezincification. Designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper to copper joinery. Applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal.

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature 250°F
• Copper-to-copper connections

Product Highlights

This NIBCO ball valve features a full port and stainless steel trim. It has a blowout-proof stem and reinforced PTFE seat rings. It is lead-free and conforms to MSS SP-110.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB84HLXA
• Country of Origin: US

Technical Specifications

• Manufacturer: NIBCO
• Part Number: NFB84HLXA
• Model: PC-585-66-LF-LX
• Series: PC-585-66-LF
• Type of Valve: Ball
• Nominal Pipe Size: 1" x 1"
• End Connection Type: Female Press x Female Press
• Material: Lead-Free Bronze
• Ball Body Type: Two-Piece
• Ball Operator: NIB-SEAL Locking Extended Insulated Handle
• Ball Port Style: Full Port
• Trim Package: Stainless Steel Trim
• Turns Operations: Quarter-Turn
• Potable Water Code: LL Compliant NSF/ANSI 372
• UPC Code: 039923447760
• Length: 7.56"
• Width: 3.46"
• Height: 1.97"
• Cold Working Pressure: 250 psi
• Maximum Temperature: 250 F
• Stem Design: Blowout-Proof
• Seat Material: PTFE
• Handle Style: Lever
• Lead-Free: Yes
• Valve Type: Ball Valve
