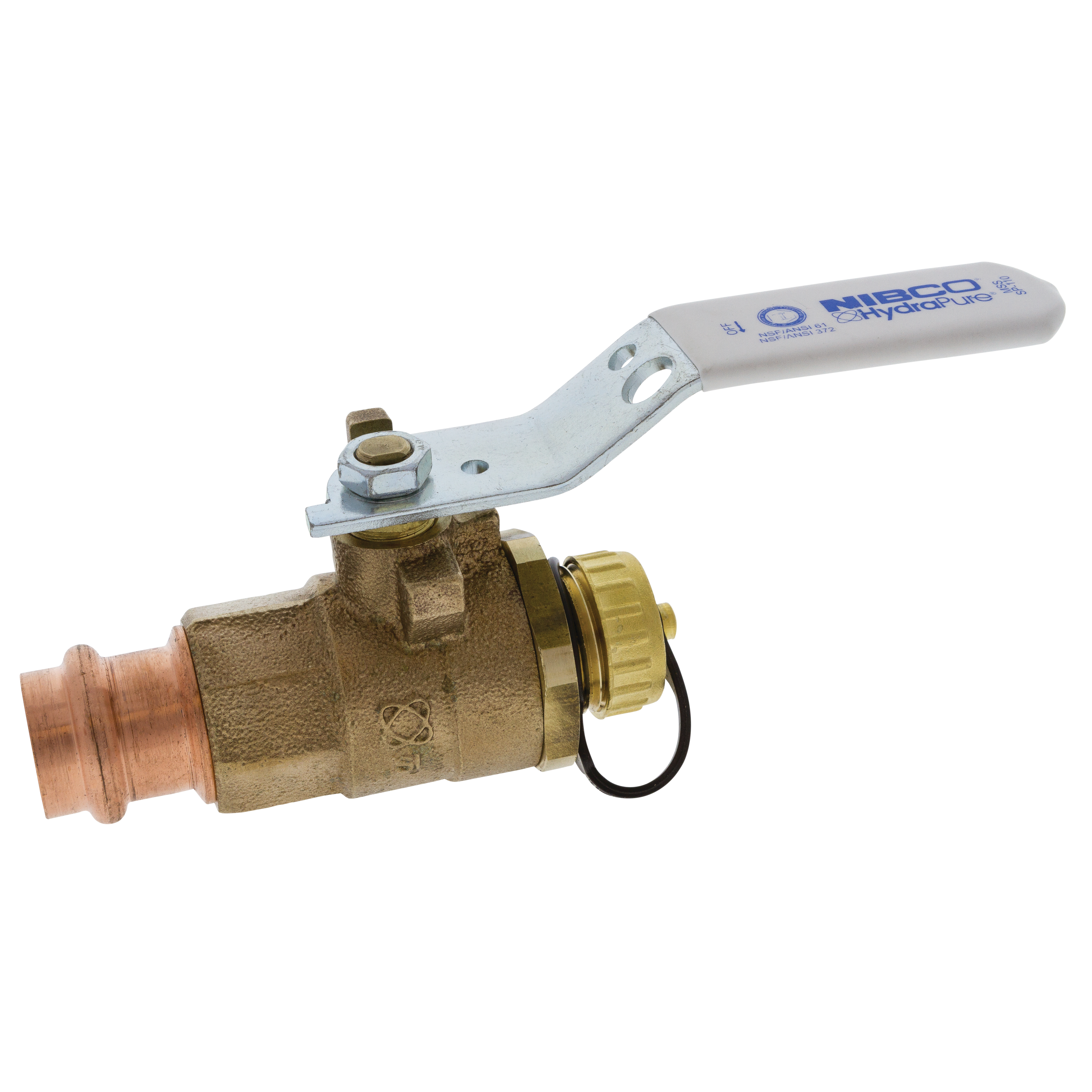

Nibco NFB84HH6 Lead Free Bronze Ball Valve Press X Hose

Product Description

The NIBCO NFB84HH6 is a lead free HydraPure Performance Bronze ball valve engineered for NIBCO Press System installations. It features a 1/2 inch press inlet connection with a 3/4 inch hose connection outlet, making it suited for systems that deliver water for human consumption. When properly crimped using a compatible pressing tool, a unique witness mark becomes visible on the fitting, confirming a complete and secure connection. This valve is part of the broader NIBCO Press System, which brings press technology to flow control applications and is installed by licensed plumbers in residential and light commercial piping systems.

The NFB84HH6 is designed for use in potable water systems where lead free compliance is required. Its press-style connection eliminates the need for open-flame soldering, making it a preferred option in occupied buildings or retrofit applications where fire risk must be minimized. The 1/2 inch press inlet is compatible with standard press-fit copper tubing, and the 3/4 inch hose end connection supports typical hose bib or drain service configurations. It is backed by a 5-year limited warranty from the manufacturer.

Key Features

• Lead free HydraPure Performance Bronze construction for potable water compliance
• 1/2 inch press inlet connection for flameless, tool-pressed installation
• 3/4 inch hose connection outlet for hose bib or service drain applications
• Unique witness mark confirms proper crimp completion during installation
• 5-year limited manufacturer warranty
• Part of the NIBCO Press System — compatible with NIBCO pressing tools, jaws, and chains

Compatibility

Designed for use within the NIBCO Press System, which includes a full range of precision-engineered copper fittings, bronze valves, pressing tools, jaws, and chains. Refer to NIBCO technical data sheets and catalogs for full engineering and compatibility information.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before beginning work. Use only compatible NIBCO pressing tools and jaws rated for this connection size — do not attempt to solder or thread a press-style fitting. Verify the witness mark is fully visible after crimping to confirm a complete seal.

Technical Specifications

• Inlet Connection Size: 1/2 inch press
• Outlet Connection Size: 3/4 inch hose
• Material: Lead Free HydraPure Performance Bronze
• Valve Type: Ball Valve
• Application: Potable water systems
• Warranty: 5-year limited
• UPC: 039923447678

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NFB84HH6
