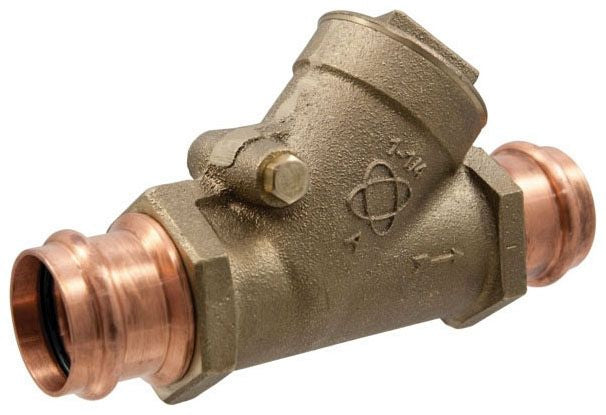

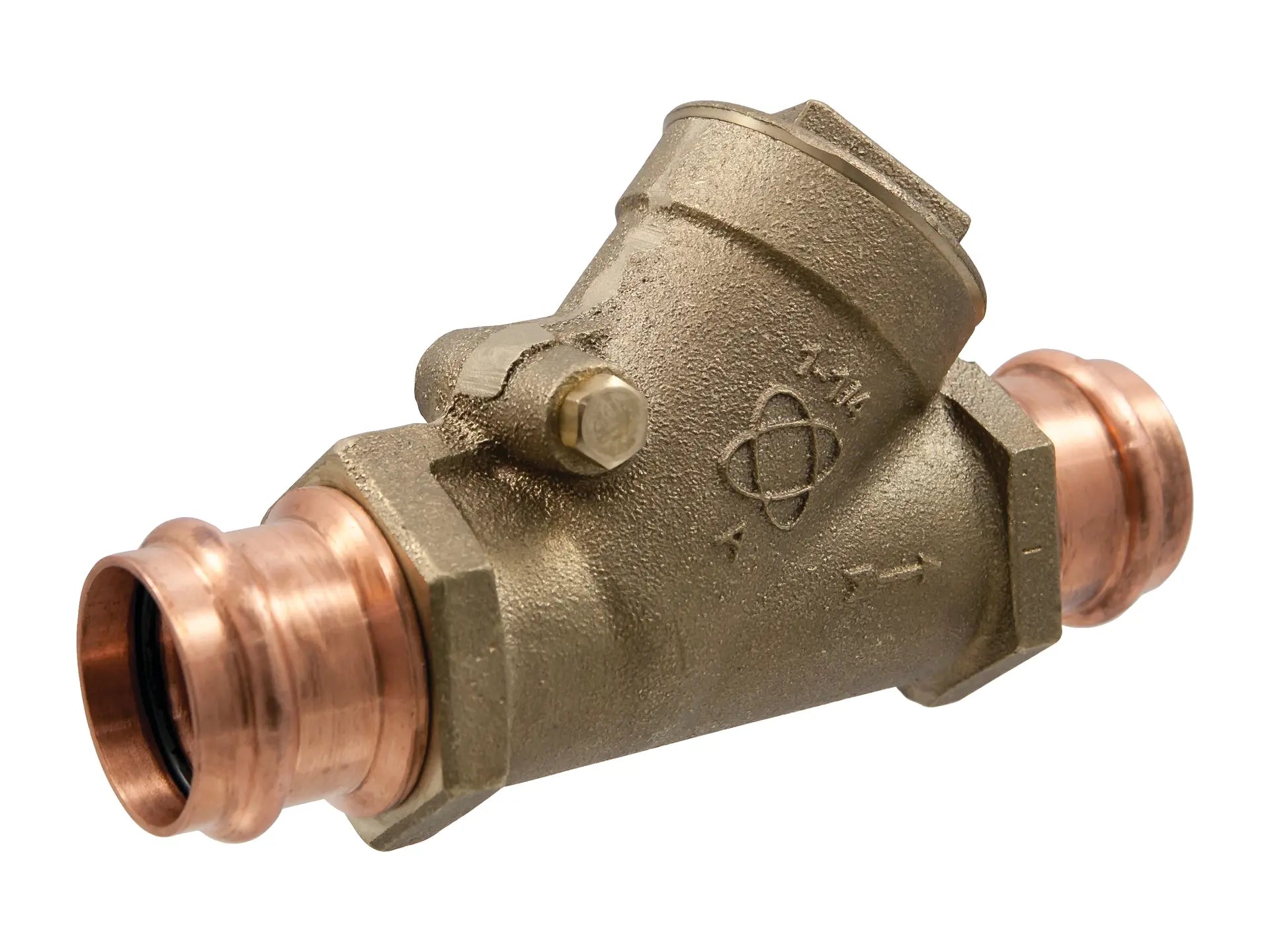

Nibco NF7400XA pc-413-y-lf Check Valve 1 inch

Product Description

The NIBCO NF7400XA PC-413-Y-LF check valve features a screw-in bonnet for accessibility to repair or replace parts. This swing check valve can be installed horizontally or vertically with flow moving up. It has a valve pressure rating of 200 psi/13.8 bar non-shock cold working pressure and conforms to MSS SP-80.

• Y-pattern design
• Renewable seat and disc
• Lead-free bronze construction

Product Highlights

The NIBCO check valve is easy to install with a unique witness mark and is suitable for delivering water for human consumption.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: NF7400XA
• Country of Origin: US

Technical Specifications

• MPN: NF7400XA
• Brand: NIBCO
• Type: Check Valve
• Connection Type: Press
• Valve Size: 1 in
• Material: Bronze
• Valve Type: Check Valve
• Valve Pattern: Y
• Lead-Free: Yes
• Connection: 1" Female Press
• Cold Working Pressure: 200 psi
• Disc Style: Renewable
• Disc Material: PTFE
• Seat Style: Regrindable
• Type of Check Valve: Swing
• Turns Operations: Non-Manual
• Potable Water Code: LL Compliant NSF/ANSI 372
• Length: 5.75"
• Width: 3.28"
• Height: 1.84"
