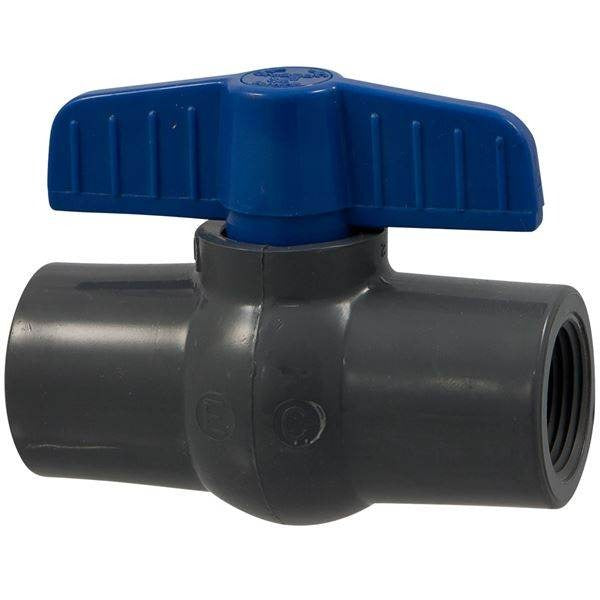

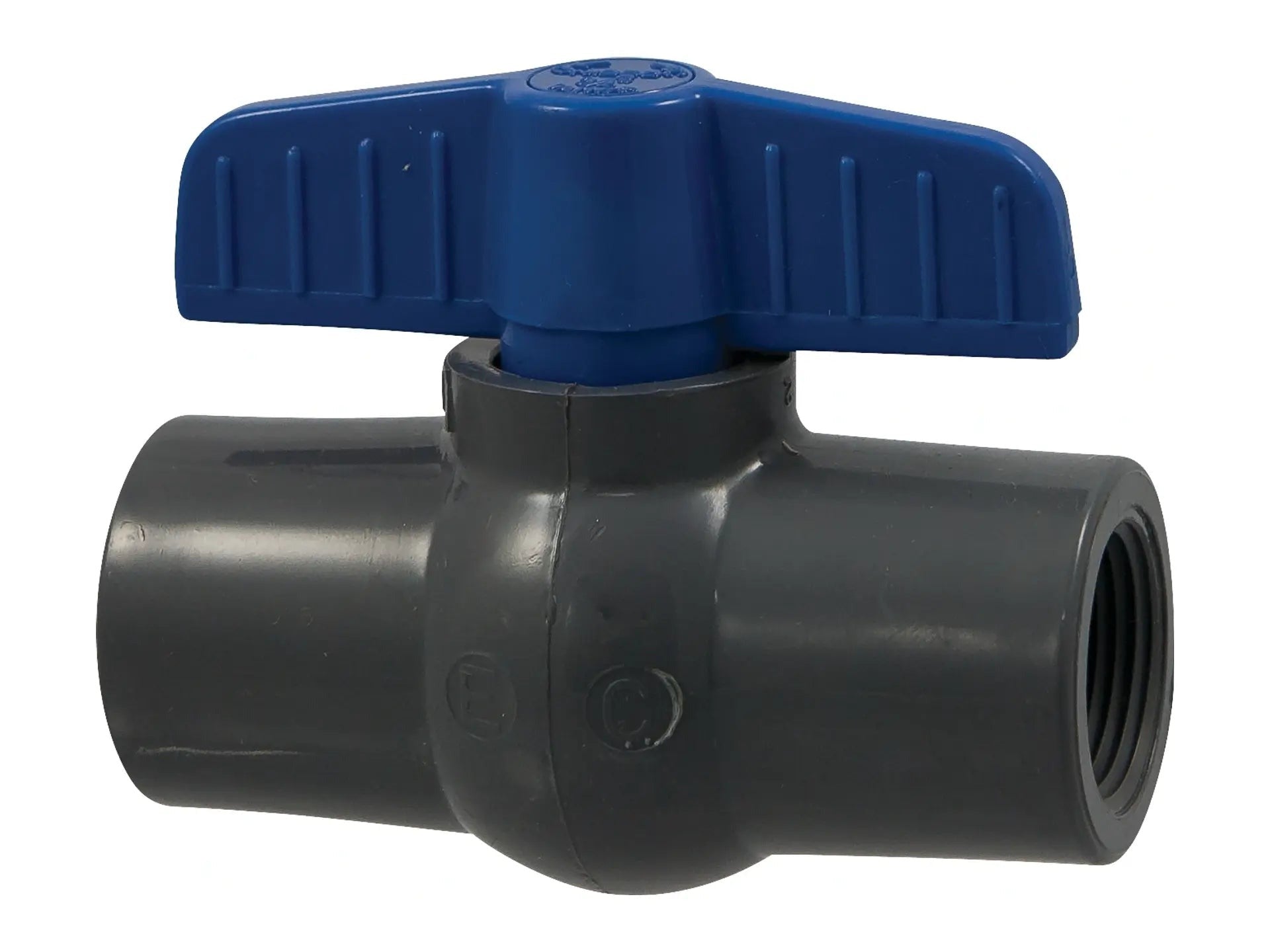

Nibco MA065AD T45CE-E Ball Valve Threaded PVC Schedule 80 (2 inch)

Product Description

The NIBCO MA065AD is a compact economy T45CE-E series 2-inch threaded ball valve constructed of PVC Schedule 80 with EPDM seats and seals and female NPT x female NPT connections. The valve provides quarter-turn manual on/off control via a T-handle and is rated for 150 psi at 73°F. It is certified to NSF/ANSI standards for plumbing applications and is intended for fluid shutoff and flow control in industrial, commercial, agricultural, and residential systems.

• PVC Schedule 80 body with EPDM seat/seal and female NPT x female NPT threaded connections
• T-handle quarter-turn operation; valve pressure rating 150 psi at 73°F and maximum service temperature 113°F at 112 psi
• Certifications: ASTM F1970, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI 372; thread standard ASME B1.20.1; do not use or test with compressed air or other gases

Product Highlights

2-inch PVC Schedule 80 threaded ball valve with EPDM seals, T-handle operation, 150 psi rating, and NSF/ANSI certifications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: MA065AD
• Country of Origin: Taiwan
