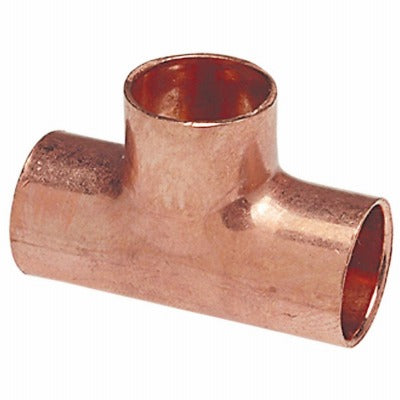

Nibco Inc W01690T Copper Solder Tee 3/4x3/4x1/2 Cxcxc

Product Description

The NIBCO INC W01690T is a 3/4 x 3/4 x 1/2 inch copper pressure tee fitting with a solder-cup (CxCxC) end connection on all three ports. It is designed for use in continuous water supply pipelines where a branch outlet is required. The fitting carries a lead-free construction, making it suitable for potable water applications. Plumbers and pipefitters install this fitting by soldering each port to the corresponding copper tube using standard sweat-solder technique. The unit quantity is sold in packs of 10.

This tee fitting is used in residential and light commercial plumbing systems where a 3/4 inch main run must branch to a 1/2 inch line. Common install scenarios include water distribution headers, branch supply runs to fixtures, and retrofit piping work. The CxCxC configuration requires clean, deburred copper tubing at all three ports prior to assembly. Its lead-free material composition meets requirements for drinking water system use under applicable plumbing codes.

Key Features

• Lead-free construction suitable for potable water service
• Solder-cup (CxCxC) end connections on all three ports for standard sweat-solder assembly
• 3/4 inch run ports with 1/2 inch branch outlet for common residential supply configurations
• Sold in a package quantity of 10 units
• Allows branch connection off a continuous pipeline without interrupting the main run

Compatibility

Designed as an OEM-style replacement and standard-use fitting for copper pressure piping systems using sweat-solder CxCxC connections in 3/4 x 3/4 x 1/2 inch configurations.

Installation Notes

Installation is performed by a licensed plumber following applicable local plumbing codes and IAPMO or IPC standards. Shut off the water supply and relieve system pressure before cutting into any existing line. All copper tube ends must be cut square, deburred, and cleaned with emery cloth or a pipe cleaning tool before applying flux and solder. Do not apply excessive heat to the fitting body, as overheating can damage the fitting or cause incomplete solder joints.

Technical Specifications

• Connection Type: CxCxC Solder Cup
• Run Size: 3/4 inches x 3/4 inches
• Branch Size: 1/2 inches
• Lead-Free: Yes
• Package Quantity: 10 EA
• Weight: 1.54 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: W01690T
