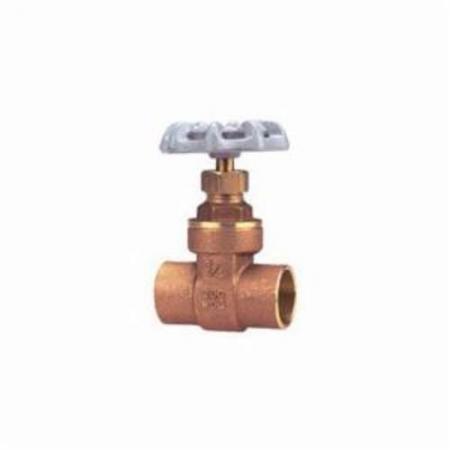

NIBCO INC N00126D SI8 2 Full Port Gate Valve

Product Description

The NIBCO INC N00126D is a SI8 series, two-inch full port gate valve. It features solder end style construction and operates under a pressure rating of two hundred psi. The valve includes a handwheel actuator for easy operation and is made from durable brass with graphite and rubber softgoods.

• Full port design for unrestricted flow
• Easy to operate handwheel actuator
• Non-rising stem for space-saving installation

Product Highlights

This gate valve is suitable for irrigation services and is built to withstand demanding applications. Its reliable construction ensures consistent performance in controlling flow.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: SI-8

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Brass
• End Style: Solder
• Nominal Size: 2 in
• Port Type: Full
• Pressure Rating: 200 psi
• Hand Wheel Diameter: 3.27 in
• Top to Inlet Center: 6.02 in
• Softgoods Material: Graphite/Rubber
• Domestic/Import: Import
