NIBCO INC MA817AF S45BC-E 3 SOC TU BALL CK EPDM PVC

Product Description

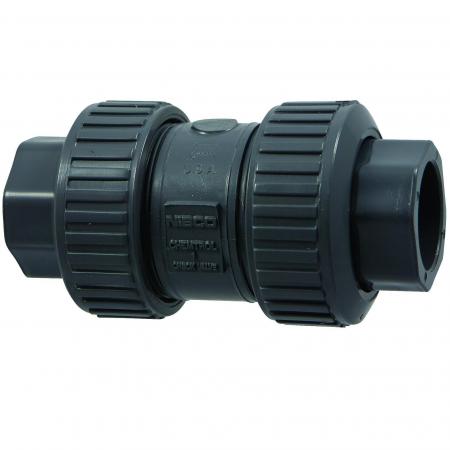

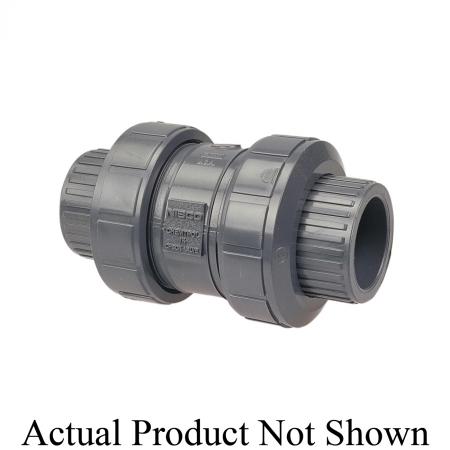

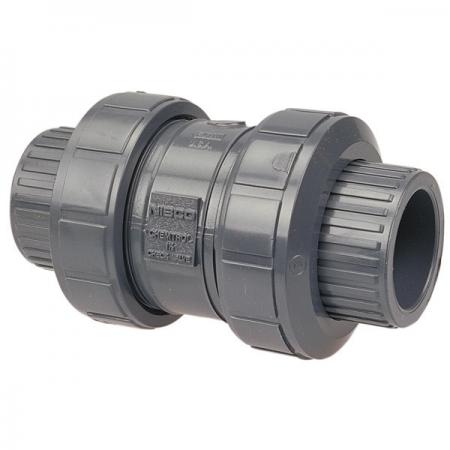

The NIBCO INC MA817AF is a True Union Ball Check Valve, size three inches. This valve is fitted for socket connections and can handle pressure ratings up to one hundred fifty psi. It is designed for water media and features a nine point ninety-eight inches inlet to outlet length. The body and ball are both made from durable PVC material, while EPDM is used for the soft goods.

• Pressure rating of one hundred fifty psi at seventy-three degrees Fahrenheit
• Constructed with PVC ball and body materials
• Suitable for various applications including chemical processing and irrigation systems

Product Highlights

This valve is ideal for use in chilled water distribution and chemical drainage applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Category: Valves

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 9.98 inches
• Media: Water
• Nominal Size: 3 inches
• Port Type: Full
• Pressure Rating: 150 psi
• Series: S45BC-E
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees Fahrenheit
• Type: True Union
