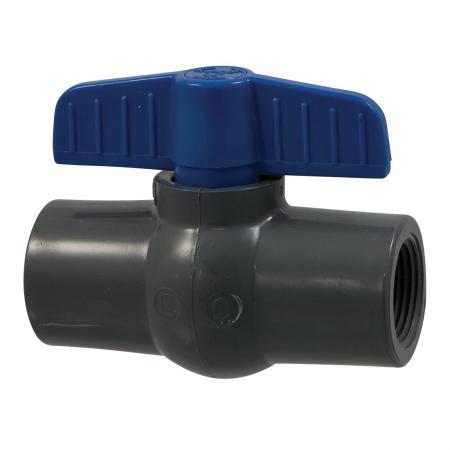

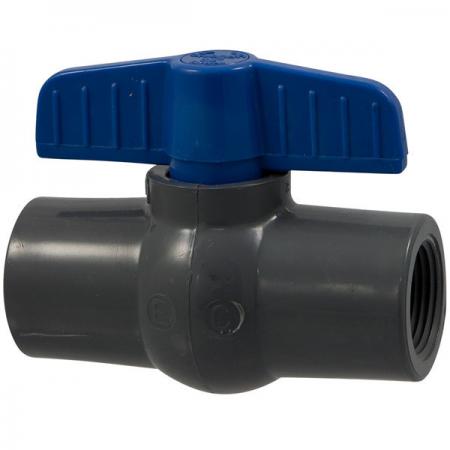

NIBCO INC MA065A8 T45CE-E 3/4 THD PVC BALL VALVE

Product Description

The NIBCO INC MA065A8 T45CE-E 3/4 THD PVC Ball Valve is designed for reliable performance in water applications. It features a compact design and is made from durable PVC materials, making it suitable for various plumbing tasks. This valve is rated for a pressure of one hundred fifty psi at seventy-three degrees Fahrenheit.

• Compact PVC ball valve
• Threaded design for easy installation
• Meets ASTM standards and is NSF approved

Product Highlights

The valve is ideal for controlling water flow in residential or commercial settings. Its design ensures long-term use, and it should not be used with compressed air or gases.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: T-45-CE-E

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Nominal Size: 3/4 in
• Pressure Rating: 150 psi
• Media: Water
• Inlet to Outlet Length: 3.74 in
• Orifice Size: 0.79 in
• Temperature Rating: 73 deg F
• Softgoods Material: EPDM
• End Style: Thread
• Top to Inlet Center: 2.13 in
