NIBCO INC MA064A6 S45CE-E 1/2 SOC PVC BALL VALVE

Product Description

The NIBCO INC MA064A6 S45CE-E 1/2 SOC PVC BALL VALVE is designed for various plumbing applications. This valve is suitable for water service and operates effectively under a pressure rating of 150 psi. The compact design allows for easy installation and integration into existing systems.

• Socket connection per ASTM D2467 standards.
• Constructed with PVC materials and EPDM softgoods.
• Compatible with water media only; do not use with compressed air or gases.

Product Highlights

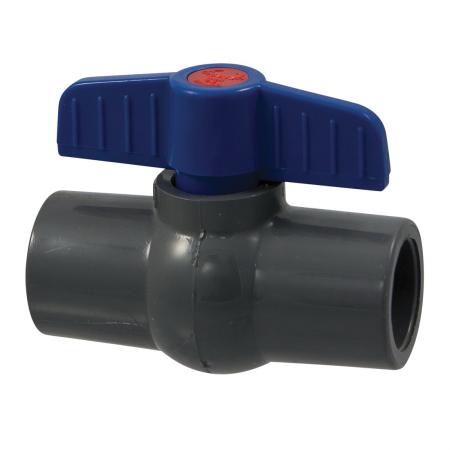

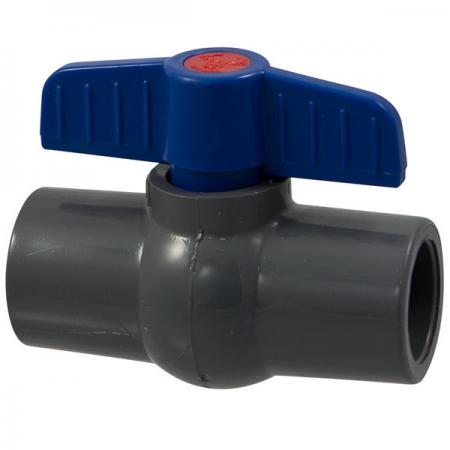

The NIBCO S45CE-E ball valve features a blue handle with a red cap for easy identification. Its reliable construction ensures long-lasting service in plumbing systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: S-45-CE-E

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Domestic/Import: Import
• End Style: Socket
• Inlet to Outlet Length: 3.27 inches
• Media: Water
• Nominal Size: 1/2 inches
• Orifice Size: 0.55 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees F
• Top to Inlet Center: 1.69 inches
• Trim Material: PVC Stem
• Type: Compact
