NIBCO H81403HV 3/4 Press x Flange High Velocity Isolator

Product Description

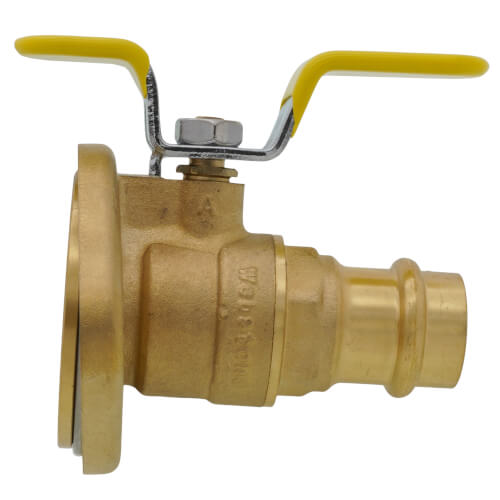

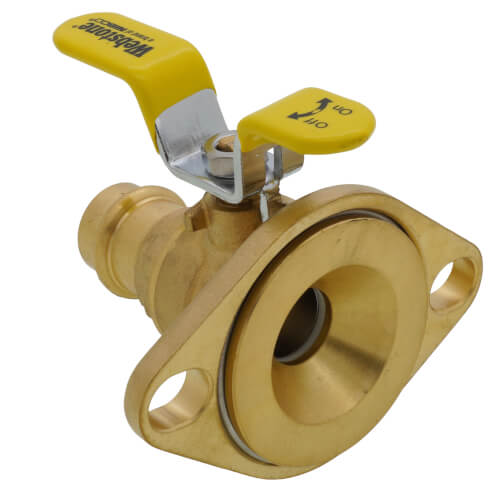

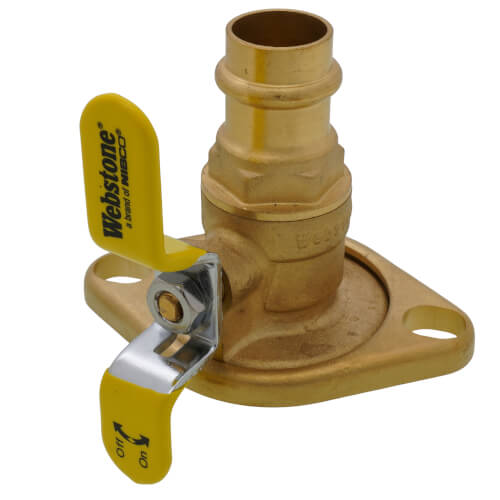

The NIBCO H81403HV is a three-quarter inch high-velocity isolator. It features a press connection on one end and a rotating flange on the other. This device is made with forged brass. Its detachable rotating flange allows for easy installation and disconnection. The adjustable packing gland, along with included nuts and bolts, ensures a secure fit.

• Detachable rotating flange for easy maintenance.

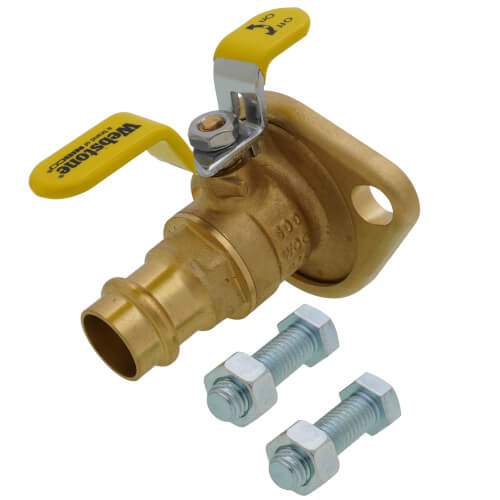

• Adjustable packing gland included for enhanced reliability.
• Rated for a maximum pressure of 250 PSI and maximum temperature of 250 degrees Fahrenheit.

Product Highlights

This isolator is ideal for isolating and connecting piping systems in various applications, including standard and high-velocity pumps.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H81403HV

Technical Specifications

• Series: 8140
• Nominal Size: 3/4 inch
• Connection Type: Press x Rotating Flanged
• Opening Size: 3/4 inch
• Operator Type: Handle
• Pressure Rating: 250 lb/sq-in CWP
• Temperature Rating: 250 degrees Fahrenheit Maximum
• Material: Forged Brass
• Handle Material: Chrome-Plated Steel
• Packing Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
• Trim Material: Chrome-Plated Brass Ball
• Dimensions: 3-5/16 inches L
• Item Weight: 1.36 pounds
• Item Dimensions: L 3.31 x W 3.19 x H 2.88 inches
• Type: High Velocity
• Connection Size: 3/4 inch
